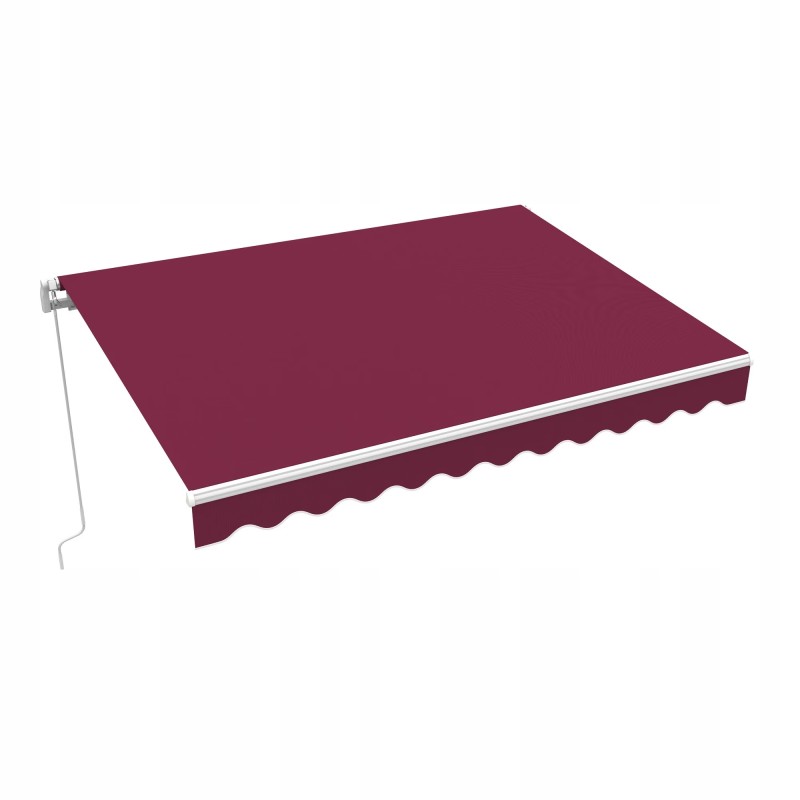

Balcony Terrace Awning Basic 2000 foldable 250x150 burgundy

Balcony Terrace Awning Basic 2000 foldable 250x150 burgundy PRODUCT FEATURES AWNING ARM

Dimensions (width x projection x height): 250 x 150 x 19.1 cm

Wind resistance class: 2 (wind force 5)

Roof area (± 2 cm): 231 x 150 cm

Tilt angle: smoothly adjustable from 5° to 35°

set to 15° on the production side

Gear ratio: 1:7

Consoles: including wall bracket

optional ceiling or rafter bracket

Number of consoles: 2

Weight: 16.41 kg

FRAME

Frame colour: white (similar to RAL 9003)

Frame material: high quality aluminium

Frame steel cables: double steel cable guide with plastic coating

Wave tube: aluminium

Ø 70 mm

Support tube: Steel

40x40mm

Failure profile: aluminium

47x35mm

Number of articulated arms: 2

Dimensions of articulated arms: 58x30mm

50x25mm

MATERIAL

Awning fabric colours: burgundy

Awning fabric material: Polyester (stripes: solution-dyed, plain: piece-dyed)

280 g/m² ± 10 g

PU coating

Light resistance: EU level 6 according to ISO 105 B02

UV protection: 30+

Valance height (± 0.8 cm): 21 cm

CRANK

Length and position: 160 cm

seen from the outside, left

Material and colour: Crank tube (∅ 14 mm) made of white powder-coated steel

Black plastic handles

Basic 2000 folding awning – the advantages at a glance High quality and stability

Thanks to the double steel cable guide, the articulated arms do their job particularly well!

The Basic 2000 awning has a built-in crank, which you can use to extend and retract it. It is also possible to equip the awning with an engine!

Weather-resistant.

The awning remains stable up to wind force 5, the polyester fabric has a UV protection factor of 30+ and has been impregnated (water and dirt are not scary to it!).

What distinguishes our Basic 2000? Our Basic 2000 model is ideal not only for shading the terrace, but also attracts attention! On the one hand, this is due to the beautiful, bright colors of the awning fabric and the bright white in which the frame shines. At the same time, the high quality of workmanship ensures stability at wind force up to 5 (approx. 38 km/h).

Basic 2000 is available in four sizes with a width of 250 to 400 cm and a reach of 150 to 300 cm. You will definitely find the right model for you, thanks to which you will be able to enjoy sunny days in good shade.

Stable and solidly made – works quietly!What exactly makes our Basic 2000 so exceptionally stable? We have simply integrated a double steel cable guide into the aluminium joint arms. Another great effect is that the awning unfolds and retracts very quietly. To minimise wear and tear on the joints of the arms, we have also wrapped the steel cables in a plastic cover. To protect it from weather damage, we have additionally painted it with high-quality paint. Stainless steel screws mean that rust has no chance!

High-quality fabric and vivid colours for a long timeThe awning cover is made of high-quality polyester fabric, which is not only impregnated with a water and dirt-repellent layer, but also has a UV protection factor of 30+. This means that you can stay under the awning for several hours without fear of sunburn.

Do you prefer something subtle? Then you will probably choose a fabric in cream-white. For those who prefer more vibrant colours, we also offer shades of yellow and red. If you are a fan of stripes, you can choose from combinations of sand-orange, red-black or white-grey, for example. Thanks to a special manufacturing process, the colours do not fade as quickly, even after long-term use.

Easy assembly and adjustment of the inclination angleThe awning can be attached to the wall. When mounting on the wall, depending on the width of the awning, attach 2 to 4 brackets to the wall in a straight line. Then hang the awning on the support tube in the wall brackets. The required number of wall brackets is included in the delivery.

☝ The inclination angle is adjusted directly using the arm brackets. It can be adjusted continuously up to a maximum of 35°. To ensure that the awning does not hang crooked, you can use the spirit level integrated in the front profile to check whether the arms are exactly parallel. Details on assembly and adjustment of the inclination angle can be found in the assembly instructions.
