Adjustable joist bracket 15 35 mm

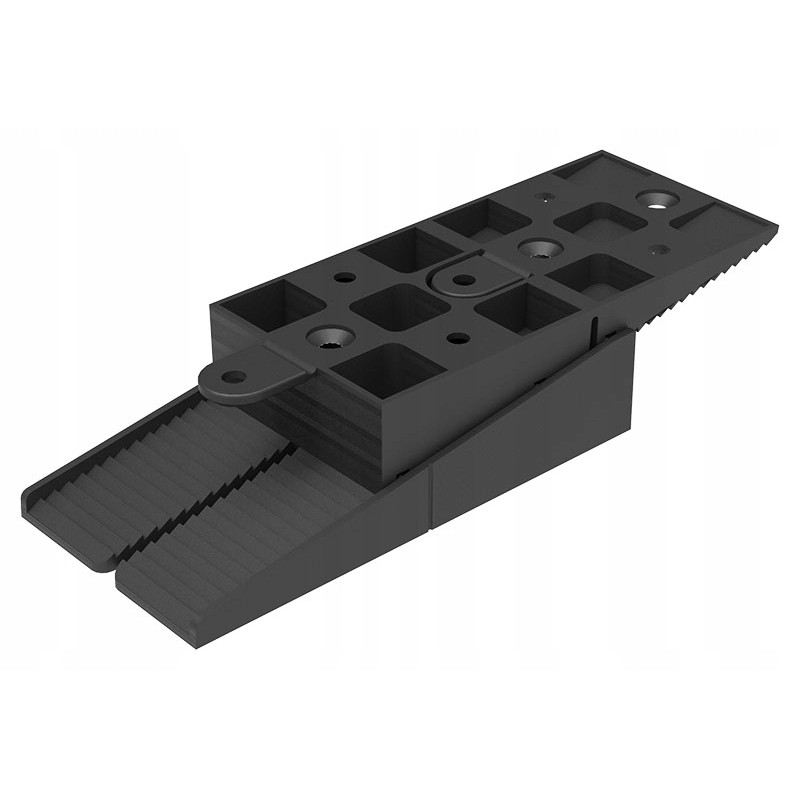

Adjustable joist support - Raptor S 15-35 mm

The support consists of two elements: BASE S and WEDGE S. It is designed for leveling joists under external terraces and under floors on joists inside buildings.

It can be used on various types of surfaces alone or with the use of system add-ons.

Technical data:

- adjustment range: 15-35 mm,

- dimensions of the S base: 120x55.5x25 mm

- dimensions of the S wedge: 120x55.5x23.5 mm

- weight: 0.065 kg,

- material: PP,

- colour: black,

- load resistance: 1000 kg.

Method of operation:

The height of the support is adjusted by moving the S WEDGE along the serrated BASE S.

The S wedge is made in a way that allows it to be broken or cut into 2 parts, and the resulting elements can be used as two separate full-value wedges, both with a joist mounting bracket.

Note: halving the wedge is necessary to obtain an adjustment range of 15 mm or more.
