Adjustable terrace support for joists 10 24 mm adjustable permanent support

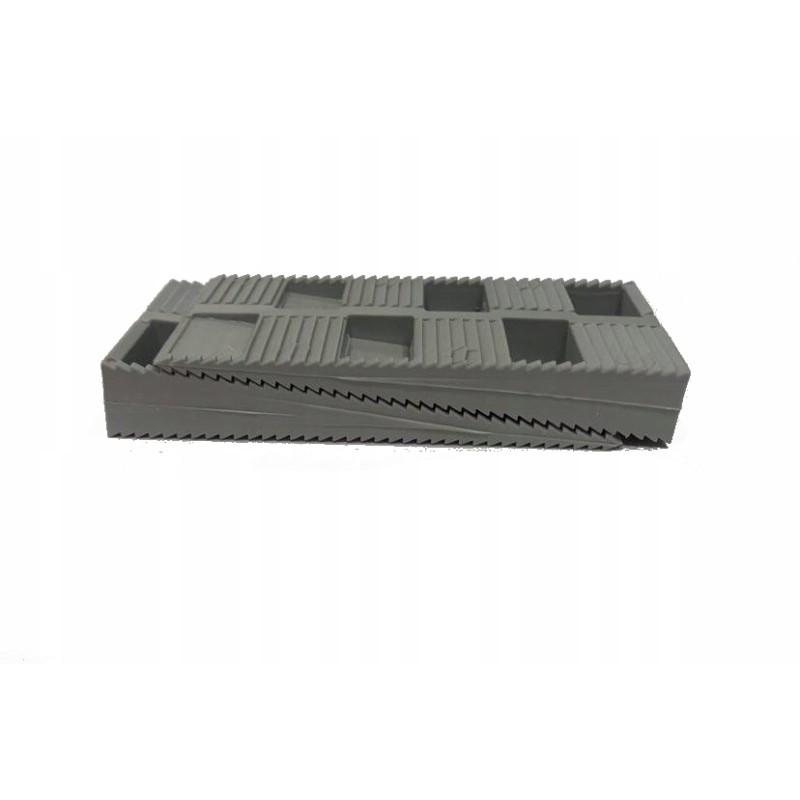

Adjustable terrace support 10-24 mmThe adjustable terrace support was manufactured by the Danish company Harpun. The adjustable support is designed to be used as an adjustable support for joists, a product designed for use outside and inside buildings.The support for this adjustment is created by connecting two gray mounting wedges in the size of 15x43x88 mm.

Harpun adjustable supports will prove themselves not only as support for a ventilated terrace, but will also be used as supports for a raised floor. The available adjustment range is really wide - the supports allow for adjustment from 10 mm to 294 mm. On our other auctions you will find an adjustable bracket adapted to your needs!

Basic features of the Harpun adjustable terrace bracket adjustment range for a joist with a maximum width of 80 mm - 10 to 24 mm,

load capacity of one support point - 400 kg,

temperature resistance - from -30 to +90 C

the spacing of the brackets should be adjusted to the recommendations of the manufacturer of the joists and boards for which the bracket will be a support - on average every 45 cm,

material - polyethylene with refiners,

installation method - we recommend a 'floating' construction without mounting to the ground, mounting to the joist with a screw 25 mm longer than the thickness of the joist, the screw should penetrate the common part of the wedges

To adjust the terrace above 30 mm, we recommend a system of brackets consisting of a foot and a wedge, which is available on our other auctions.

Surfaces on which Harpun terrace brackets can be mounted directly: Hard surfaces type:

concrete,

wood,

tiles,

stone

etc.

In the case of sensitive surfaces (roofing felt, XPS, Styrodur, geotextile, etc.), it is necessary to use an additional element, which may be a rubber pad available on our other auctions.

Terrace supports - check other heights on our auctionsHarpoon adjustable terrace support - advantages of useMaterial quality - terrace supports are made of polyethylene from the first raw material, thanks to which they are highly durable and resistant to cracking even under overloads,

Precision of workmanship - the serration of the wedge and foot is very precisely made, thanks to which the whole achieves a high load-bearing capacity and ensures leveling precision with an accuracy of less than 1 mm,

The use of supports speeds up the process of stable leveling of the joists and allows you to obtain a terrace surface at the expected height regardless of the level of the ground,

The distance between the joists and the ground allows you to lay the joists, and therefore the boards, in any direction, without the risk of stopping water,

The space obtained thanks to the brackets allows for constant ventilation of materials,

A proven solution, over 30 years of tradition in Denmark and Scandinavian countries,

Modular structure of the system - feet and wedges are compatible within the system.

Sample photos of implementations for brackets of different heightsAdjustable Harpun terrace brackets - choose an original solution!Regardless of whether it is a large terrace in the home garden or a terrace on the balcony, it is always a considerable expense. When building a terrace, you must be sure that it will last for years. The market is full of poor quality brackets, often also made in China.

By choosing Harpun adjustable terrace brackets, you can be sure that you are getting an original product made in Denmark, which has been available on the market for over 30 years and tested by hundreds of installers, professionals, but also DIY enthusiasts who like to do everything at home themselves!
