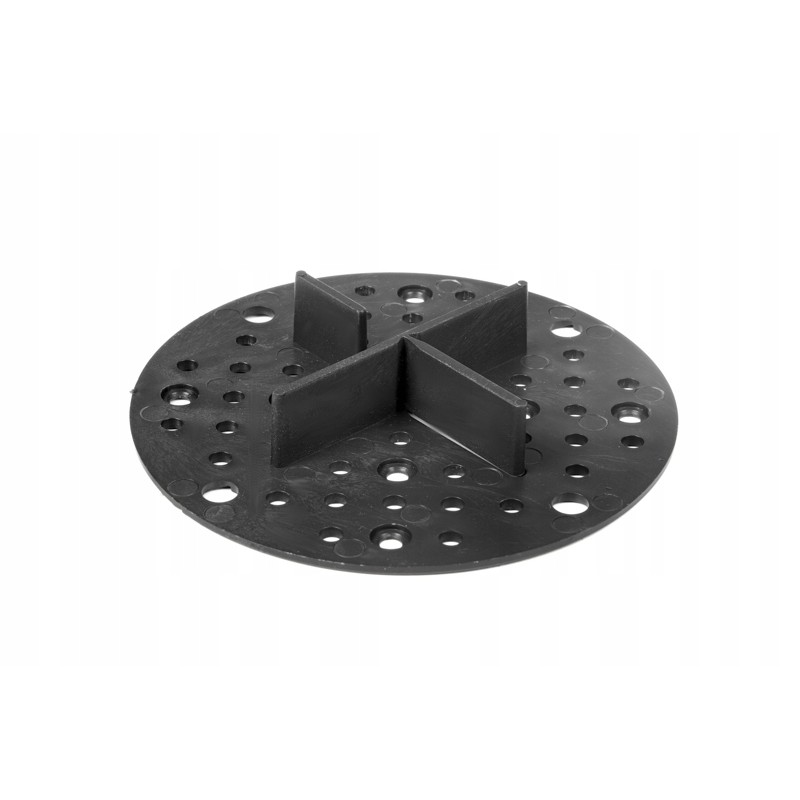

Base support pad for terrace slabs 2mm black

For use with boards.

Height 2 mm.

Prevents boards from keying and sliding.

Stabilizes corners and gaps between boards.

Resistant to loads.

APPLICATION

The pads are used to place boards on them in order to stabilize corners and gaps between boards. They allow for the arrangement of a stable and even surface, prevent boards from keying. They are used for direct arrangement on the substrate, indirectly on rubber pads or on another type of substrate / substructure. The pads have built-in vertical ribs 3 mm wide for establishing gaps between the terrace elements being laid, it is also possible to install additional 5 mm wide joint strips (L5).

TECHNICAL DATA:

Height 2 mm

Diameter Ø 100 mm (78.5 cm2 )

Built-in joint width 3 mm

Weight 0.025 kg

Load capacity up to 2500 kg

Temperature range -20 ° C, + 65 ° C

Color Black Material Certified PP plastic

INTENDED USE Terrace made of tiles.

CERTIFICATION: Product certified by the Institute of Building Technology. NATIONAL TECHNICAL ASSESSMENT ITB-KOT-2022-2174

METHOD OF OPERATION

Designed for use with tiles, they allow for the arrangement of a stable and even surface, stabilize corners and gaps between tiles. The bases can be easily cut/broken due to their modular structure - for convenience, the base has lines marked on it, which easily indicate the fragments to be cut/broken. The divided structure of the base and the spacer insert allows for laying in any arrangement of the tiles. For additional, stronger stabilization of the floor, the bases can be attached to the substrate using metal pins.
