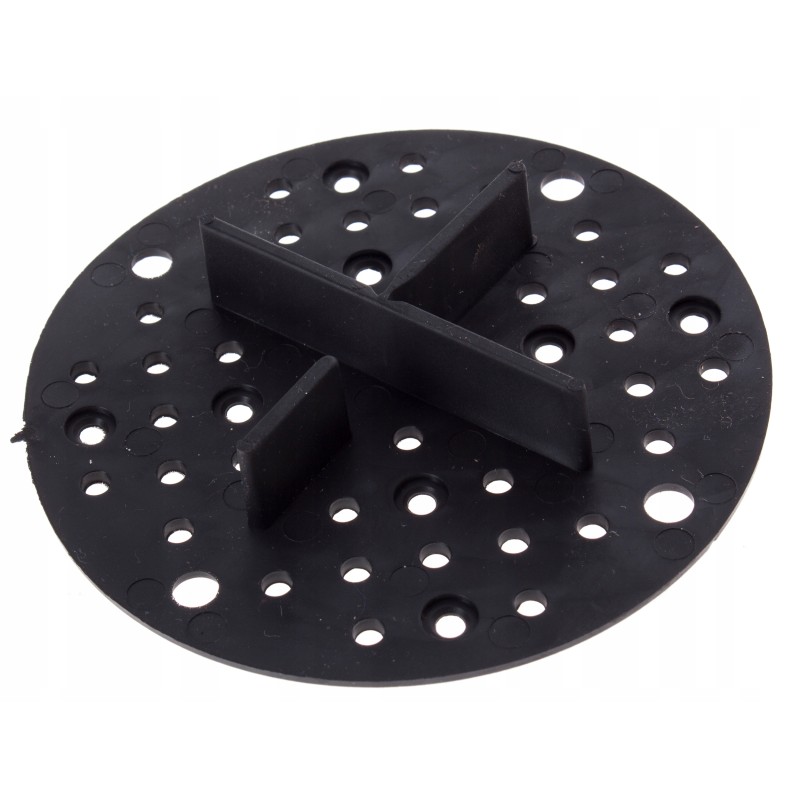

Support for terrace slabs

Support (base) for terrace slabs, height 10mm. Base creating a 3.5 mm joint/gap between slabs.

Bases can be laid directly on waterproofing (tar paper, PVC foil, EPDM, etc.) and hardened ground.

ADVANTAGES:

one base can withstand a pressure of 1000 kg, assuming a 50% reduction in value in order to maintain safety standards.

bases are modular and can be connected to each other to obtain the desired height, which allows for leveling unevenness of the substrate - maximum 5 pieces (connection examples in the assembly instructions).

easy and quick way of laying the terrace surface.

resistance to harmful weather conditions, including acid rain and UV radiation.

easy access to installations located under the terrace surface.

increased thermal insulation caused by the air space between the top layer and the remaining layers of the flat roof.

rubber pad Corrective and sound-absorbing can be used as additional cushioning between the plate and the modular bases and adjustable bases.

Combining modular bases with adjustable bases is not allowed.

Product made of PP T 20%.

Does not require ITB technical approval.
