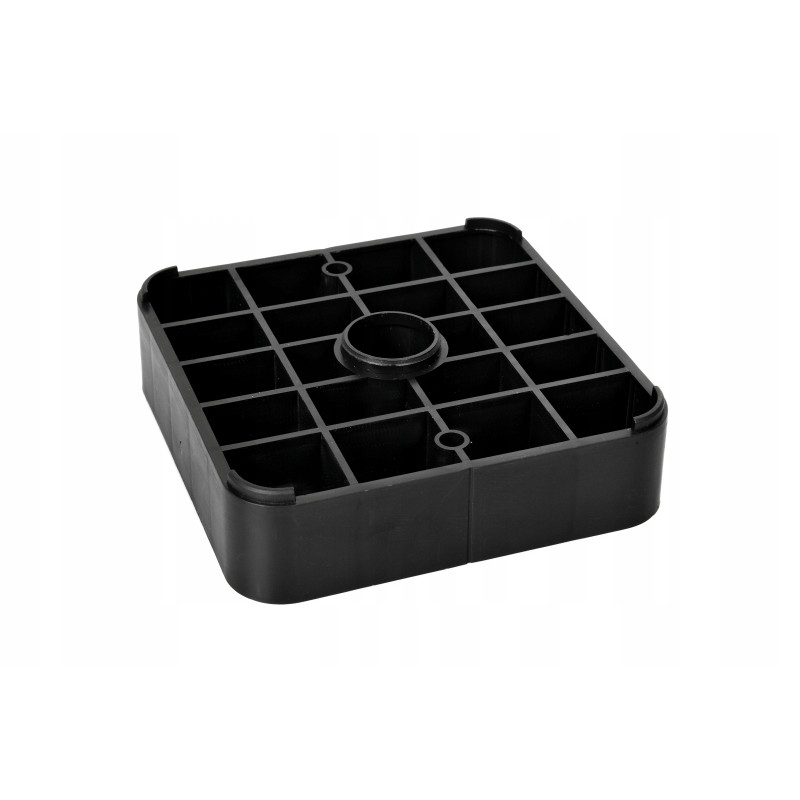

30mm Base for Raptor Joist Bracket

30 mm raising base for Raptor brackets.

The base is an additional element used to raise the Raptor series brackets: S, M, L and XL.

It can also be used in combination with other additional elements: protective and acoustic pad and 7% slope corrector.

Technical data:

- height: 30 mm,

- base dimensions: 120x120 mm,

- weight: 0.076 kg,

- material: PP,

- colour: black,

- load resistance: 1000 kg.

Method of operation:

Thanks to the base, the brackets from S to XL can be raised by multiples of 30 mm. The bases connected to the XL bracket create brackets XL1 to XL4, where the last number indicates the number of 30 mm bases added to the XL bracket.

Connection method with other elements: click.

When connecting with the L base, make sure that the markers on the 30 base and the L base are aligned.
