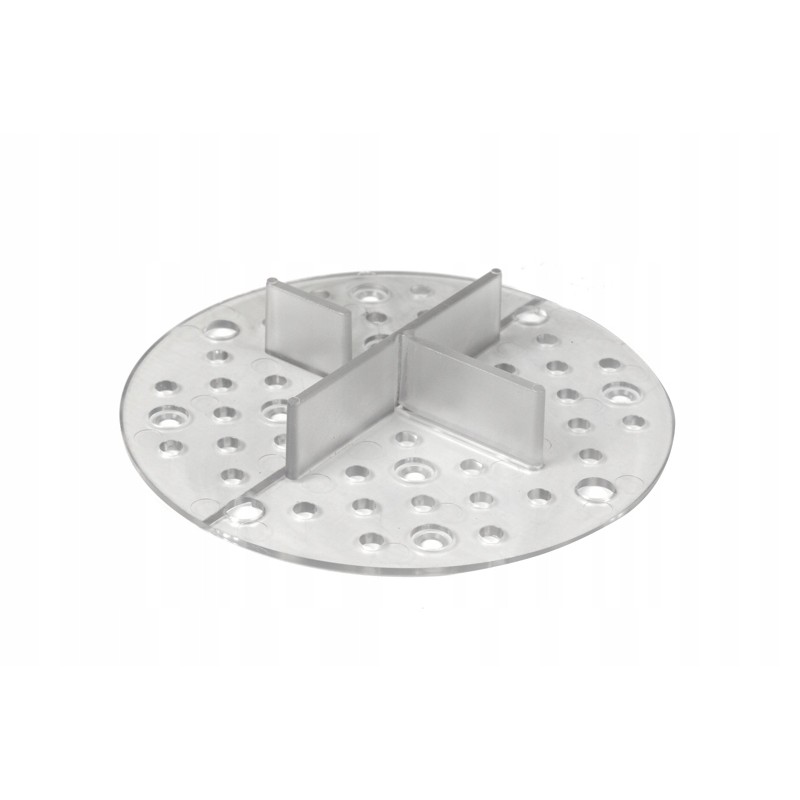

Support pad for terrace slabs 2mm transparent

For use with plates.

Height 2 mm.

Prevents plates from keying and sliding.

Stabilizes corners and gaps between plates.

Resistant to loads.

APPLICATION

The pads are used to place plates on them in order to stabilize corners and gaps between plates. They allow for the arrangement of a stable and even surface, prevent plates from keying. They are used for direct arrangement on the substrate, indirectly on rubber pads or on another type of substrate / substructure. The pads have built-in vertical ribs with a width of 3 mm used to establish gaps between the terrace elements being laid, it is also possible to install additional joint strips with a width of 5 mm (L5).

TECHNICAL DATA:

Height 2 mm

Diameter Ø 100 mm (78.5 cm2)

Built-in joint width 3 mm

Weight 0.025 kg

Load resistance up to 2500 kg

Temperature range -20 ° C, + 65 ° C

Colour Transparent Material Certified PP plastic

PURPOSE Terrace made of tiles.

CERTIFICATION: Product certified by the Building Research Institute. NATIONAL TECHNICAL ASSESSMENT ITB-KOT-2022-2174

METHOD OF OPERATION

Designed for use with slabs, they allow for the laying of a stable and even surface, stabilize corners and gaps between slabs. The bases can be easily cut / broken due to their modular structure - for convenience, lines are marked on the base, which easily indicate the fragments to be cut / broken. The divided structure of the base and spacer insert allows for laying in any arrangement of slabs. For additional, stronger stabilization of the floor, the bases can be attached to the substrate using metal pins.
