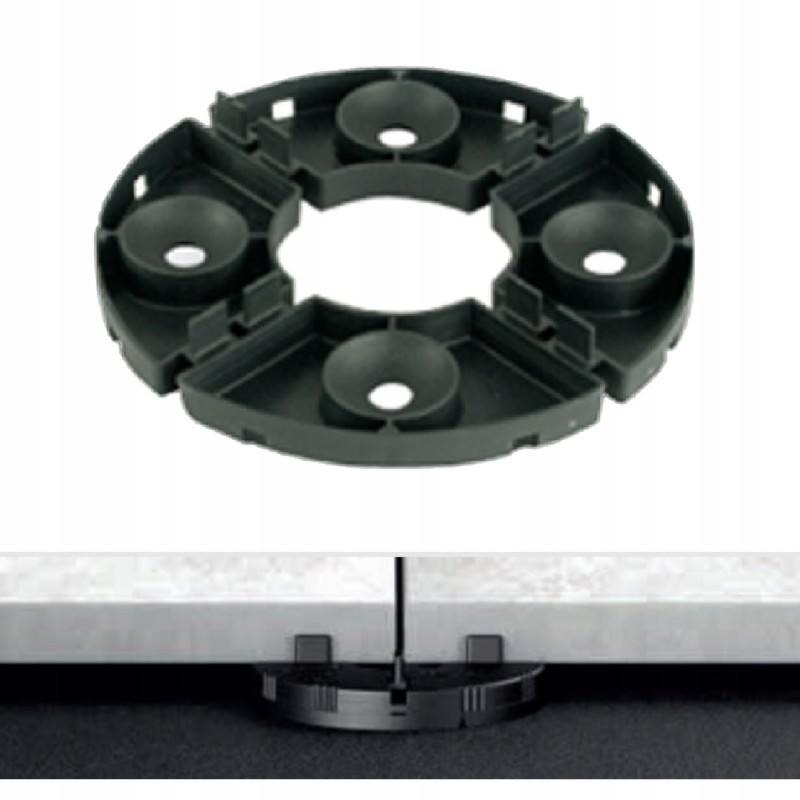

Support for terrace tiles 12mm eternoivica

ETERNOIVICA EH12Original - Italian production - Eternoivica12 mm height supportsFloor / ventilated terrace supportEH12 - for 20mm thick terrace slabsEH12 is:

the fastest and cheapest solution for mounting raised slabs / ventilated terraces

support height 12mm

possibility of connecting supports (so-called 'sandwich')

possibility of dividing the support into elements when it is necessary to use, e.g. in a corner

easy and quick assembly without the use of glue and specialist tools

durability, high resistance to compression and temperatures

available height options in the EH model - 12 / 15 / 20mm

Technical data:diameter 150mm

base height 12mm

height of the distance between the slabs 11mm

distance between the slabs 3mm

temperature resistance -40'C +120

fire classification class E

compression resistance kN 61.26

material polypropylene

resistant to weather conditions, acids, UV rays and wear

Example of connecting brackets: It is possible to connect EH bases in any configuration (one on the other)

available height options in the EH model are - 12 / 15 / 20 mm

laying and connecting the bases does not require glue or specialist tools

before laying, remember to prepare the substrate

the brackets should be placed on a stable surface!

A ventilated terrace consists of three elements: substructure (substrate on which the slabs will be laid)

mounting brackets

terrace slabs

The ventilated terrace technology has only advantages: the use of brackets simplifies and speeds up the implementation of works related to the construction of the terrace

placing the slab on the brackets makes the entire structure: light, stable, safe and frost-resistant

the supports have a distance between the slabs which prevents the terrace slabs from moving and allows the water to drain freely, which helps avoid standing puddles

depending on the height of the selected support, the space under the slabs can be used for, for example, water or electrical installations, etc.

the assembly can be carried out practically all year round

if necessary, the terrace can be easily dismantled and all elements can be reused if they are not damaged
