Acoustic pad ddr pa for raptor brackets

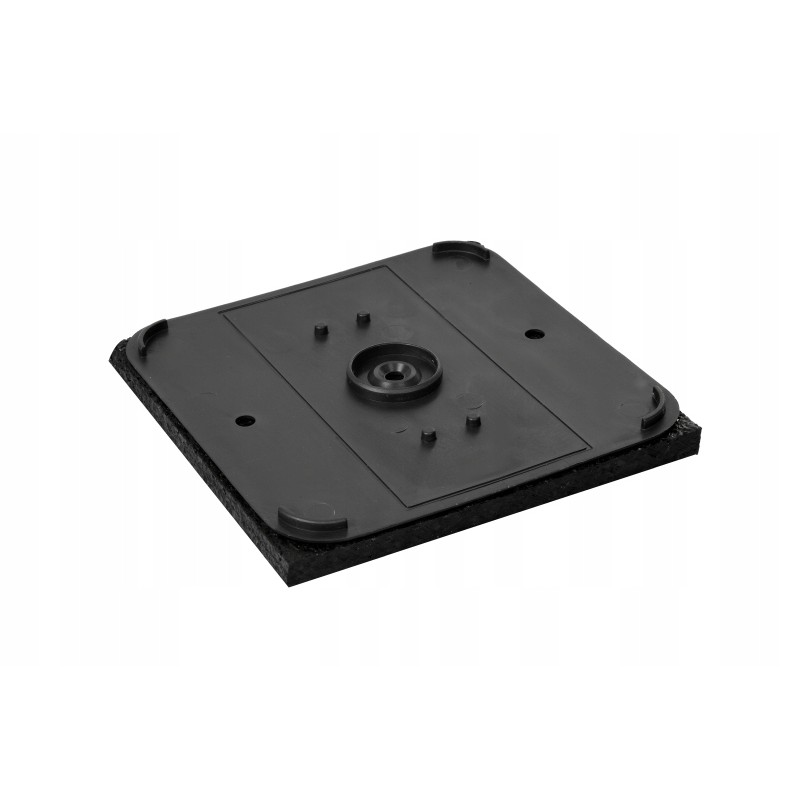

Acoustic pad for Raptor brackets.

The acoustic pad is an optional element in the Raptor bracket system. It is used, for example, when the brackets are placed on the ceiling above the rooms, in order to achieve better acoustic insulation.

The element can be used with all brackets from the Raptor S, M, L, XL to XL4 series.

Technical data:

- height: 10 mm,

- base dimensions: 124.2 x 124.2 mm

- weight: 0.052 kg,

- material: PP + SBR,

- color: black,

- load resistance: 1000 kg.

Method of operation:

The acoustic pad closes the bracket from the bottom and allows for even distribution of the pressure of the bracket walls over the surface of the entire pad.

Application examples:
