Raptor wedge bracket tilt corrector

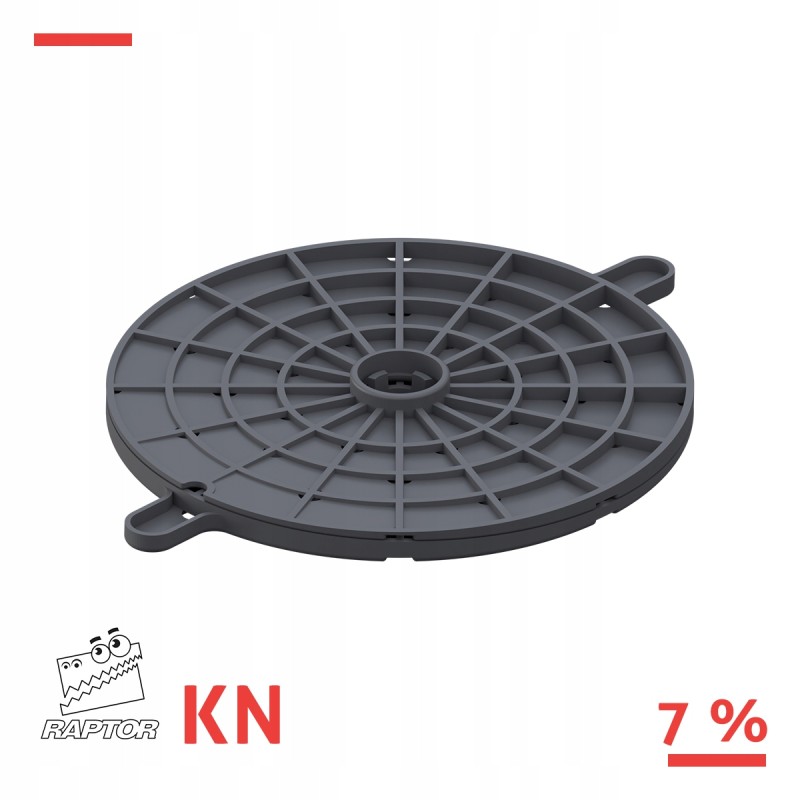

Slope corrector for RAPTOR support - 10 mm - for joistsApplication for wedge supports for RAPTOR series joists

Technical data:Height: 10 mm

Base dimensions: 158 x 203 mm

Strength: 1,000 kg

Properties:When the ground is sloping and you want your terrace to be horizontal, it may turn out that the joist will rest only on the edge of the support. This can significantly reduce the stability of the entire structure.

The slope corrector allows you to set the support vertically where its upper surface will be parallel to the joist.

RAPTOR series supports are designed for erecting terraces on joists. They have step adjustment every approx. 1 mm. Thanks to their appropriate construction, they can be used for terraces erected on both wooden joists and aluminum or composite joists. Thanks to their wide base, they provide stable support. It is possible to expand the functionality of the brackets using additional accessories.

Quick assembly

Simple construction and a handle for lateral installation of the joist significantly speed up the assembly.

Durability

Brackets resistant to heavy loads.

Height adjustment

Stepped height adjustment every ~ 1 mm

Universal use

For outdoor terraces and indoor floors.

Low heights

Adjustment range from 15 mm

Slope corrector

Smooth slope adjustment up to 7%

Bracket construction RAPTOR brackets consist of two basic elements - a wedge and a base. Heights from 125 mm are created by adding an extension base to the basic brackets.

Height adjustment RAPTOR brackets have the ability to adjust the height using a wedge. Adjustment is done by moving the wedge on the base. Step adjustment approx. every 1 mm.

Application: Terrace supports are designed for supporting / mounting / leveling wooden, composite or aluminum joists, terraces, gratings, floor surface structures, etc.

Terrace supports are adapted for use both indoors and in places exposed to direct impact of external weather conditions. Should be used on stable and even surfaces.
