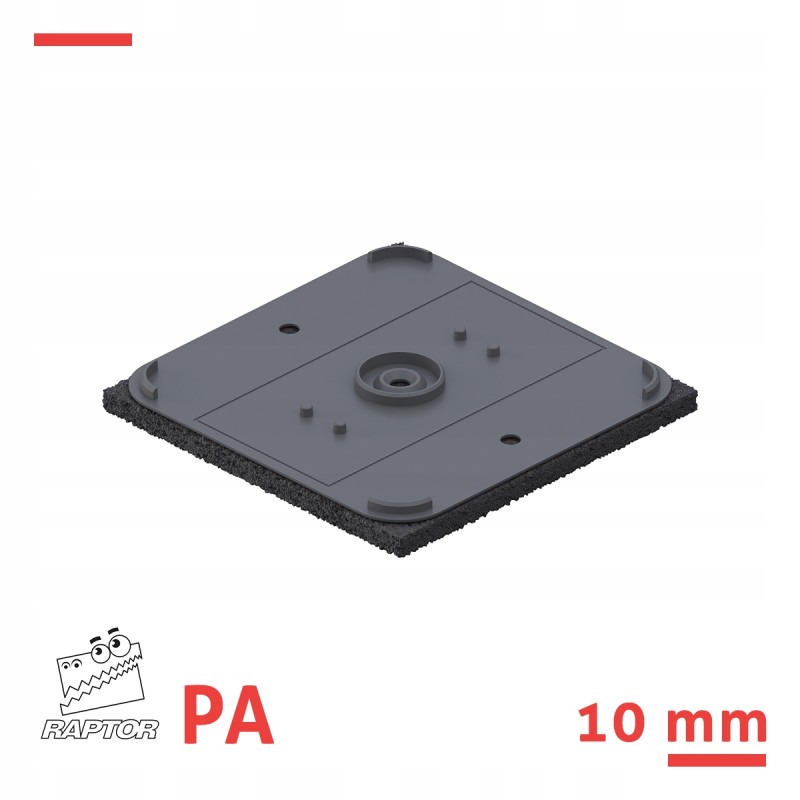

Acoustic pad raptor 10mm

Acoustic base for RAPTOR support - for joistsApplication for wedge supports for RAPTOR series joists

Technical data:Height: 10 mm

Base dimensions: 124 x 124 mm

Strength: 1,000 kg

Properties:The acoustic pad is an optional element when Raptor supports are placed above residential or office premises, where acoustic insulation is desired. etc. The element can be used with all Raptor S, M, L, XL to XL4 series supports. When using the Raptor support with an acoustic pad, the compressive strength factor should be checked for sensitive surfaces (XPS, membranes, etc.). Safe installation can only be carried out on materials with a compressive strength factor of 300 kPa per m2 or higher. In the case of lower coefficient values, additional checks must be carried out.

RAPTOR series brackets are designed for erecting terraces on joists. They have step adjustment every approx. 1 mm. Thanks to their appropriate design, they can be used for terraces erected on both wooden joists and on aluminium or composite joists. Thanks to their wide base, they provide stable support. It is possible to expand the functionality of the brackets using additional accessories.

Quick assembly

Simple design and a handle for lateral assembly of the joist significantly speed up assembly.

Durability

Brackets resistant to heavy loads.

Height adjustment

Step height adjustment every ~ 1 mm

Universal use

For outdoor terraces and indoor floors.

Low heights

Adjustment range from 15 mm

Slope corrector

Smooth slope adjustment up to 7%

Bracket constructionRAPTOR brackets consist of two basic elements - a wedge and a base. Heights from 125 mm are created by adding an extension base to the basic supports.

Height adjustment RAPTOR supports have the ability to adjust the height using a wedge. Adjustment is made by moving the wedge on the base. Step adjustment approx. every 1 mm.

Application: Terrace supports are designed for supporting / mounting / leveling wooden, composite or aluminum joists, terraces, gratings, floor surface structures, etc.

Terrace supports are adapted for use both indoors and in places exposed to direct external weather conditions. They should be used on stable and even surfaces.
