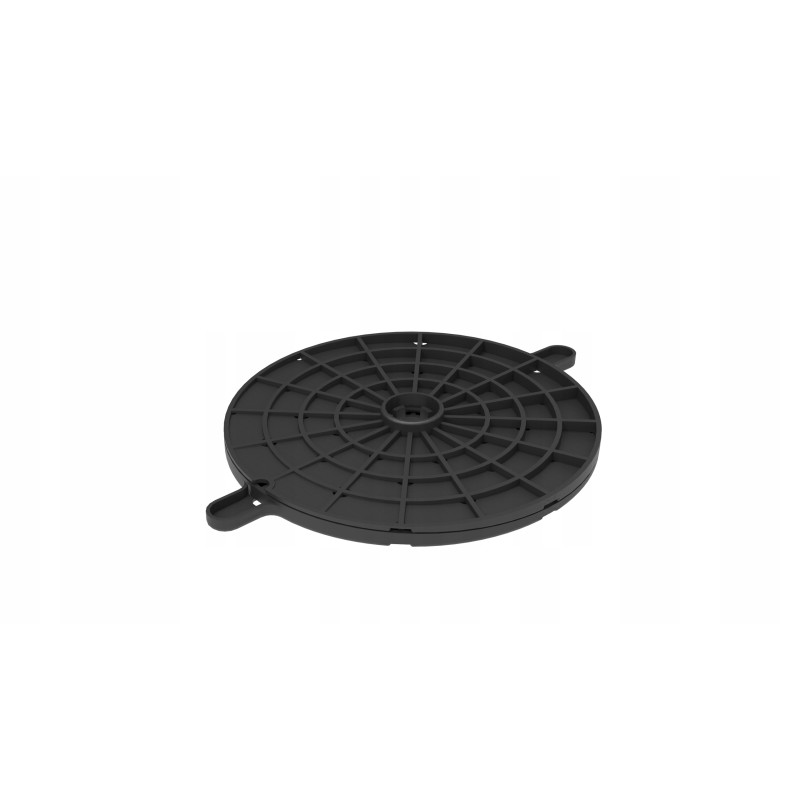

Raptor joist bracket tilt corrector

Slope corrector for Raptor series brackets

The slope corrector is an element that allows the bracket to be set perfectly horizontally on surfaces with an inclination of up to 7%.

The element can be used with all Raptor series brackets: S, M, L, XL to XL4.

Technical data:

- maximum surface inclination: 7%

- height: 10 mm

- base dimensions: 158x203 mm

- weight: 0.123 kg,

- material: PP,

- colour: black,

- load resistance: 1000 kg.

Method of operation:

The slope corrector consists of two movable elements that allow for smooth adjustment of the inclination angle. Adjustment is made by rotating these elements relative to each other using the side handles.
