Adjustable support for joists 50 85 mm for ventilated terrace, easy to install

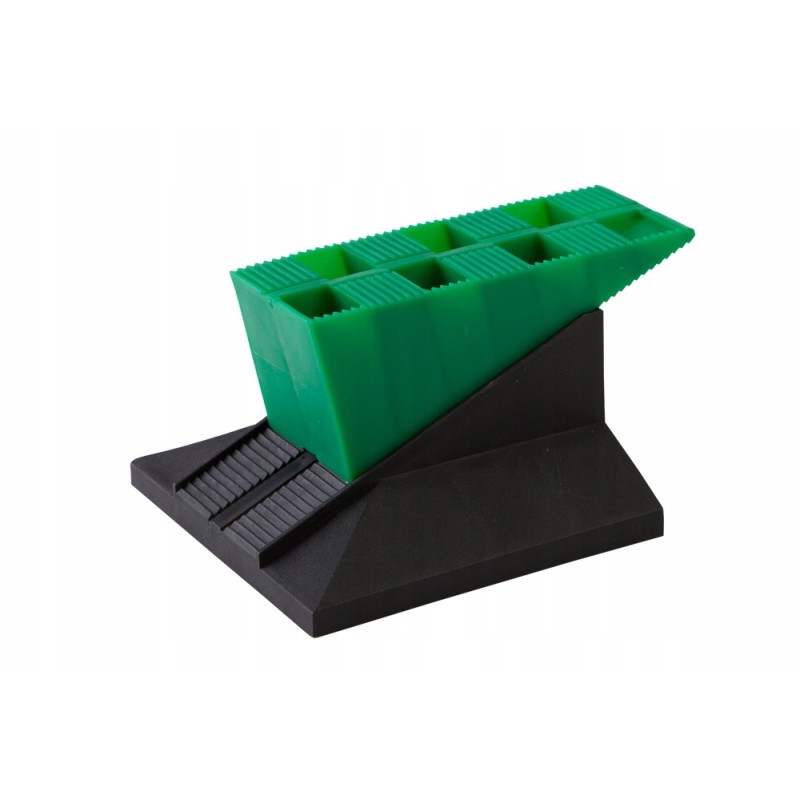

Adjustable terrace support 50-85 mmThe adjustable terrace support was manufactured by the Danish company Harpun. The adjustable support is intended for use as an adjustable support for joists, a product intended for use outside and inside buildings.

Harpun adjustable supports will prove useful not only as support for a ventilated terrace, but will also be used as supports for a raised floor. The available adjustment range is really wide - the supports allow for adjustment from 10 mm to 294 mm. At our other auctions you will find an adjustable bracket tailored to your needs!

Basic prices of the Harpun adjustable terrace bracket: adjustment range for a joist with a maximum width of 100 mm - from 50 to 85 mm,

load capacity of one support point - 400 kg,

temperature resistance - from -30 to +90 C

the spacing of the brackets should be adjusted to the recommendations of the manufacturer of the joists and boards for which the bracket will be a support - on average every 45 cm,

material - polyethylene with refiners,

installation method - we recommend a 'floating' construction without mounting to the ground, mounting to the joist with a screw 40 mm longer than the thickness of the joist, the screw should penetrate the common part of the wedge and the foot,

Surfaces on which the Harpun terrace brackets can be mounted directly: Hard surfaces such as:

concrete,

wood,

tiles,

stone

etc.

W In the case of sensitive surfaces (roofing felt, XPS, Styrodur, geotextile, etc.), it is necessary to use an additional element, which is a protective plate available in a separate auction.

Harpun adjustable terrace support - advantages of use Material quality - terrace supports are made of polyethylene from the first raw material, thanks to which they are highly durable and resistant to cracking even when overloaded,

Precision of workmanship - the serration of the wedge and foot is very precisely made, thanks to which the whole achieves a high load-bearing capacity and ensures leveling precision with an accuracy of less than 1 mm,

The use of supports speeds up the process of stable leveling of the joists and allows you to obtain a terrace surface at the expected height regardless of the level of the ground,

The distance between the joists and the ground allows you to lay the joists, and therefore the boards, in any direction, without the risk of water retention,

The space obtained thanks to the supports allows for constant ventilation of materials,

Proven solution, over 30 years of tradition in Denmark and other countries Scandinavian,

Modular structure of the system - feet and wedges are compatible within the system.

Installation of bracketsWe start the installation by spacing the brackets and placing the joists on them. Then, by appropriately moving the wedges on the feet, we level the joists.

The next stage is to screw the joist to the bracket so that the screw goes through the connection of the wedge and foot. Drilling through the wedge and foot connection will block the possibility of changing the set height - even in the event of strong impacts on the floor or terrace surface.

Surfaces on which directly adjustable supports can be mounted are hard surfaces such as:

concrete,

wood,

tiles,

stone, etc.

Additional system elements:

protective plate - used under soft surfaces such as roofing felt, styrodur, XPS board, etc. and closes the support from the bottom, thanks to which the weight is distributed over a much larger surface

slope correctors 2.5% and 5% - used for inverted roofs and terraces with a greater slope

Both elements are available in separate auctions! Do you have any doubts about the installation? We will be happy to clarify any doubts!

Sample photos of implementations for supports of different heights: Harpun adjustable terrace supports - choose an original solution! Regardless of whether it is a large terrace in the home garden or a terrace on the balcony, it is always a big expense. When building a terrace, you need to be sure that it will last for years. The market is full of poor quality supports, often also made in China.

By choosing Harpun adjustable terrace supports, you can be sure that you are getting an original product made in Denmark, which has been available on the market for over 30 years and tested by hundreds of installers, professionals, but also DIY enthusiasts who like to do everything at home themselves!
