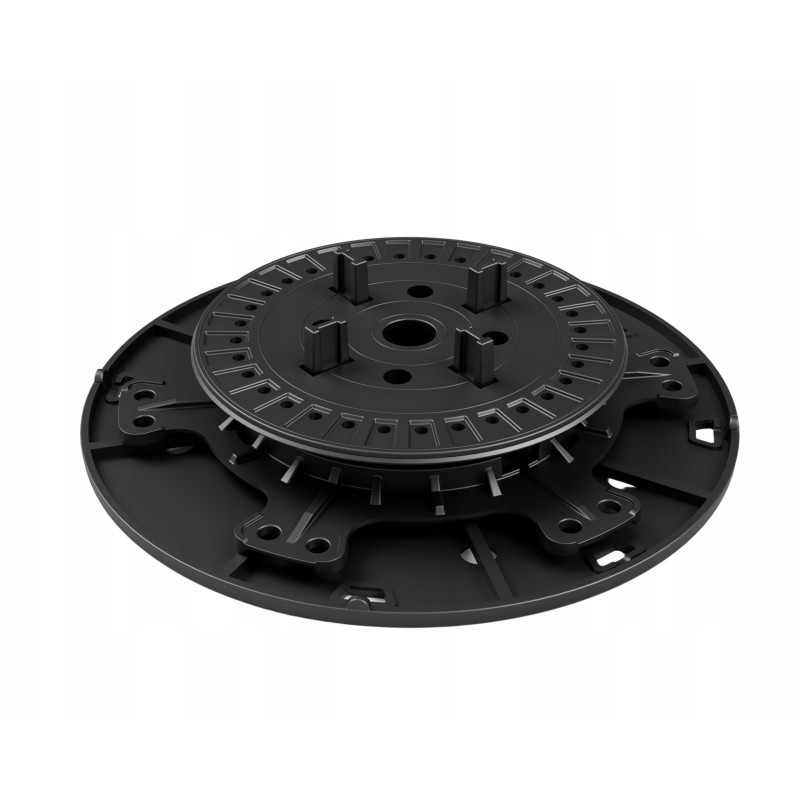

Terrace support for 19 27mm slabs bato 3mm joint

Terrace support for tiles with precise height adjustment in the range of 19-27mm

Joint cross width 3mm

Professional BATO adjustable terrace support system allows for easy installation of ventilated terraces. High-quality plastic that can withstand loads of up to 1000 kg, making it unrivaled in terms of both quality and price. Can be installed in outdoor and indoor areas.

Smoothly adjustable supports allow for precise height adjustment of the bases for terrace tiles.

Dimensions:

Head diameter: 127 mm

Base diameter: 196 mm

Adjustable height: 19-27 mm

Joint element thickness: 3 mm

Raw material: polypropylene

Temperature range -40 C to +75 C

Number of supports per 1 m2 of terrace depending on the size of the tile:

30 x 30 cm 11.11 pcs. of support

40 x 40 cm 6.25 pcs. of support

30 x 60 cm 5.56 pcs. of support

50 x 50 cm 4 pcs. of support

60 x 60 cm 2.78 pcs. of support

80 x 80 cm 1.56 pcs. of support

90 x 90 cm 1.24 pcs. bracket

30 x 120 cm 5.56 pcs. bracket

40 x 80 cm 3.13 pcs. bracket

40 x 120 cm 4.17 pcs. bracket

60 x 120 cm 1.39 pcs. bracket

Load capacity: 1000 kg
