Adjustable support bracket for mounting terrace joists 35 65 mm

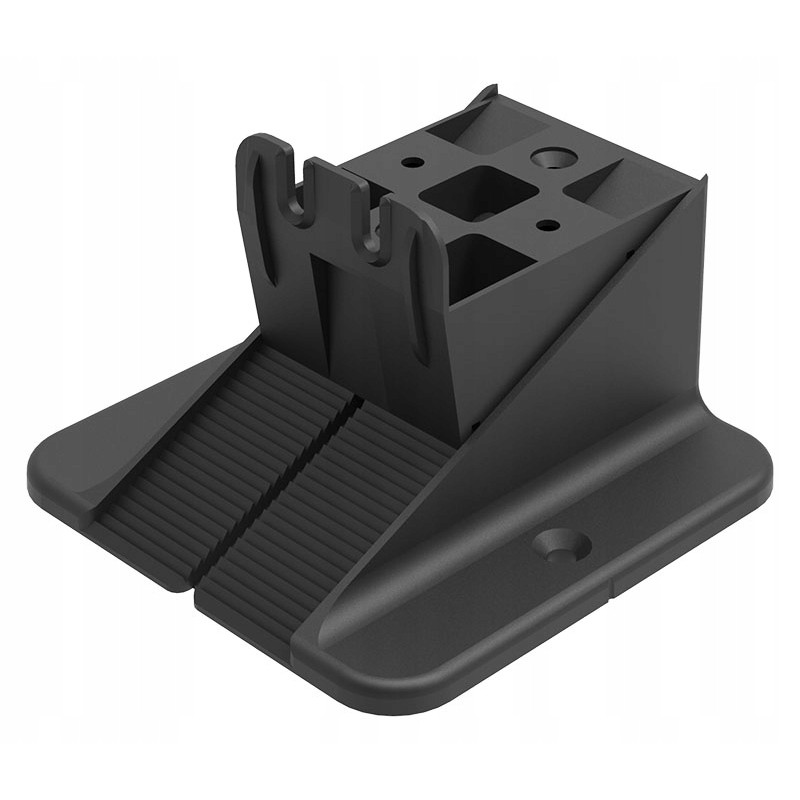

Adjustable joist support - Raptor M 35-65 mm

The support consists of two elements: BASE L and WEDGE M. It is designed for leveling joists under outdoor terraces and under floors on joists inside buildings.

It can be used on various types of surfaces alone or with the use of system accessories.

Technical data:

- adjustment range: 35-65 mm,

- dimensions of the L base: 120x120x58.5 mm

- dimensions of the M wedge: 76.4x59.5x55 mm

- weight: 0.107 kg,

- material: PP,

- colour: black,

- load resistance: 1000 kg.

Method of operation:

The height of the support is adjusted by moving the M WEDGE on the serrated BASE L.

It is possible to attach the support to the ground if necessary, in such a situation, use the mounting holes in the L base.
