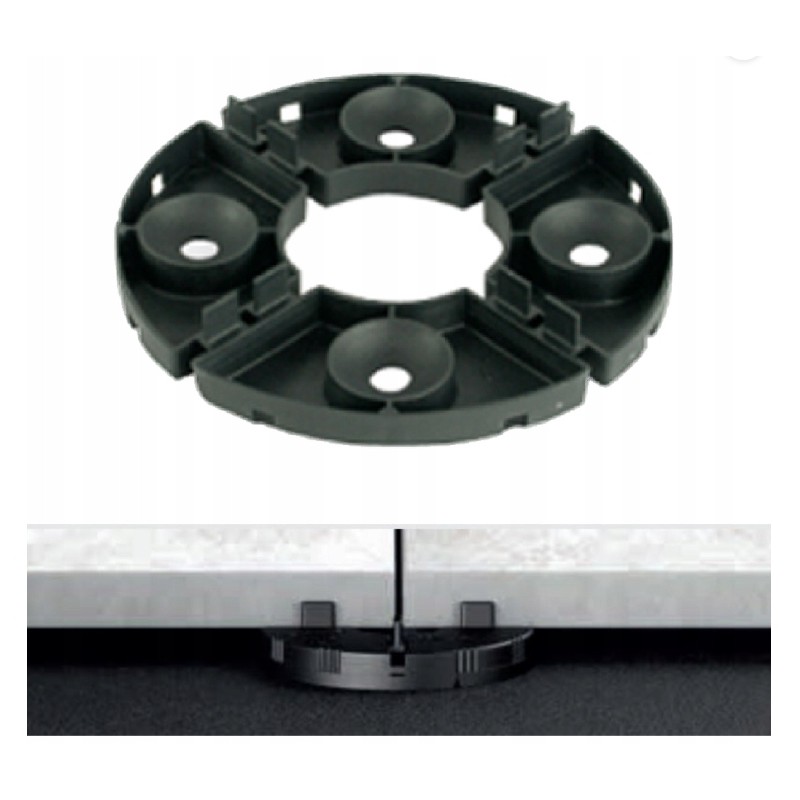

Support for terrace slabs 20mm eternoivica

ETERNOIVICA EH20Original - made in Italy - Eternoivica20 mm height supportsFloor / ventilated terrace supportEH20 - for 20mm thick terrace slabsEH20 is:

the fastest and cheapest solution for mounting raised slabs / ventilated terraces

support height 20mm

possibility of connecting supports (so-called 'sandwich')

possibility of dividing the support into elements when it is necessary to use it, e.g. in a corner

easy and quick assembly without the use of glue and specialist tools

durability, high resistance to compression and temperatures

available height options in the EH model - 12 / 15 / 20mm

Technical data: diameter 150mm

base height 20mm

height of the distance between the slabs 18mm

distance between the slabs 4mm

temperature resistance -40'C +120

fire classification class E

compression resistance kN 75.90

material polypropylene

resistant to weather conditions, acids, UV rays and wear

Example of connecting supports: It is possible to connect EH bases in any configuration (one on the other)

available height options in the EH model are - 12 / 15 / 20 mm

laying and connecting the bases does not require glue or specialist tools

before laying, remember to prepare the substrate

the supports should be placed on a stable surface!

A ventilated terrace consists of three elements: substructure (substrate on which the slabs will be laid)

mounting supports

terrace slabs

The ventilated terrace technology has only advantages: the use of supports simplifies and speeds up the implementation of works related to the construction of the terrace

placing the slab on the supports makes the entire structure: light, stable, safe and frost-resistant

the supports have a distance between the slabs that prevents the terrace slabs from sliding and allows the free flow of water, which avoids standing puddles

depending on the height of the selected support, the space under the slabs can be use for e.g. water and electrical installations, etc.

possibility of installation practically all year round

if necessary, the terrace can be easily dismantled and all elements can be reused if not damaged
