Honey extractor 3 pl diag manual oe500 universal basket

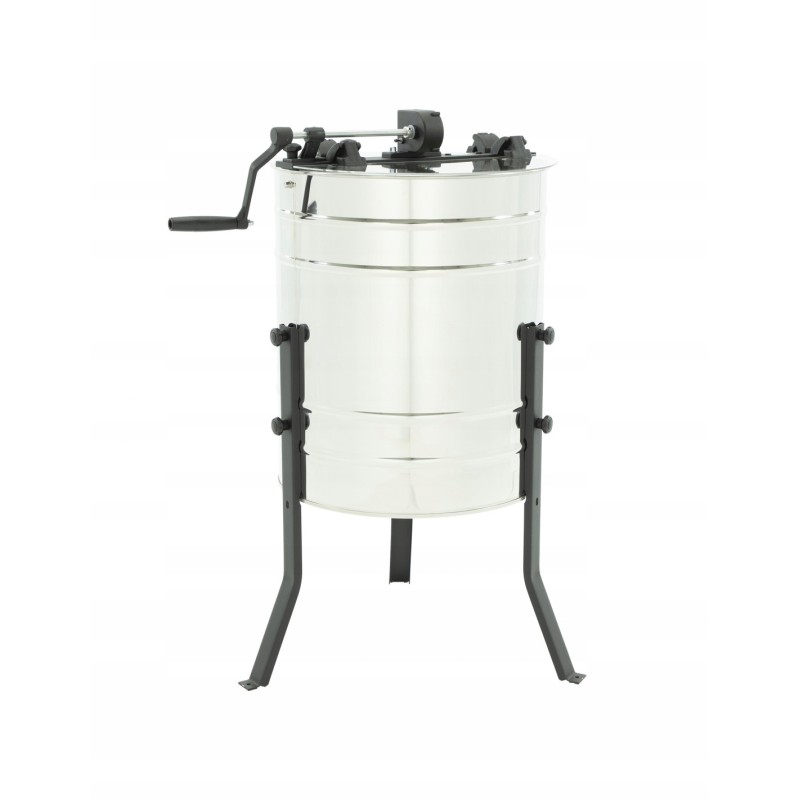

3-Frame Diagonal Manual Honey Extractor, Ø500, Universal Basket - BASIC LINE Made in Poland, you buy from the manufacturer on this auction

Product code: W2029BB

Honey extractor with a small drum diameter, characterized by its versatility consisting in the ability to spin practically all types of frames.

A characteristic feature of Diagonal honey extractors is the need to reverse the frames.

Diagonal honey extractors are intended for beekeepers with smaller apiaries.

Drum with a diameter of 500 mm made of acid-resistant stainless steel 0H18N9.

Honey extractor basket, made of acid-resistant stainless steel rods, arranged in a way that protects the frames from breaking off the combs during spinning. Mesh size 25x70 mm.

Manual drive with brake mounted on the upper beam of the honey extractor, allows work in conditions where there is no access to electricity.

Plastic valve 6/4'.

Transparent cover, made of meta-plexiglass, allowing you to observe the centrifugation process without having to open the honey extractor and risking contact with the rotating basket.

Beam and legs powder coated, which increases the resistance of the coating.

The BASIC LINE 3-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolskie, Dadanowskie, Warsaw, Warsaw widened, Langstroth.

BASIC product line

Frame type Universal

Honey extractor type diagonal 3-frame

Drum diameter Ø500

Manual drive

Drum sheet thickness 0.6 mm

Plexiglass 3 mm

Plastic Valve 6/4”

Top Bar 10mm Flat Bar Powder Coated

Short Legs Powder Coated

Plastic Hinges

Mesh Size 25x70 mm

Basket Mounting in Drum Tarnamid Sleeve

Drum Height 610 mm

No Drum Rim

Honey Extractor for Self-Assembly, Shipped in a Box
