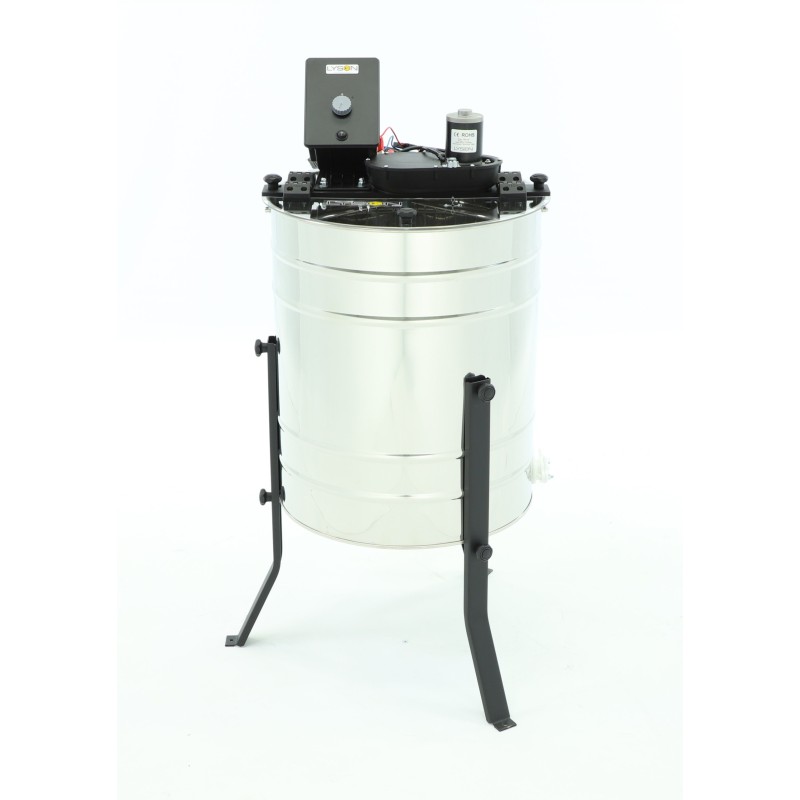

Honey extractor diagonal 4 frames universal oe600mm electric 230v lyson

4-frame diagonal electric honey extractor 230V, Ø600, universal basket - BASIC LINE Recommended for beginner beekeepers and those with small hobby apiaries with access to electricity.

18V/80W engine,

230V power supply

Diameter Ø600,

6/4” flap valve

New hinge design

Easy assembly, disassembly and cleaning

Easy to carry thanks to its low weight

Ideal for small apiaries

easy intuitive operation

electric drive

simple manual controller

transparent hinged cover

meets all sanitary and hygienic requirements

allows for the centrifugation of thick honeys without breaking the combs

a set of keys necessary for assembly included

easy availability of spare parts, e.g. valves

attractive price

Polish product

Type frames: Universal

Honey extractor type: diagonal 4-frame

Drum diameter: Ø600

Power supply: 230V

Drive: electric

Controller: MDD-01

Motor: 18V/80W

Drum sheet thickness: 0.6 mm

Plexiglass: 3 mm

The BASIC LINE 4-frame diagonal honey extractor is the basic version of the device for centrifuging honey from beecombs, in this version enriched with a convenient electric drive. The manual controller is simple and intuitive to use - the convenient knob is used to increase/decrease the revolutions.

The design of the diagonal honey extractor basket is safe for the combs - they do not break even when centrifuging thick honey. It will therefore forgive the lack of experience of beekeepers. In all diagonal honey extractors, regardless of the manufacturer, to extract honey from the other side of the comb, the frames must be turned over. However, diagonal honey extractors have been very popular in hobby apiaries for years.

The BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolskie, Dadanowskie, Warsaw, Warsaw extended frames, Langstroth.

As standard, we add special pads to the honey extractor that increase the comfort and safety of apiary work. Thanks to them, the probability of the honey extractors vibrating during honey extraction is minimized. The pads are made of PVC (SOFT). Very often, the spun frames have different weights, due to the different amounts of honey contained in them. By using LYSON pads, you ensure the highest level of device optimization.

The 4-frame diagonal honey extractor from the BASIC LINE series is the basic version of the device for centrifuging honey from bee combs, in this version enriched with a convenient electric drive. The manual controller is simple and intuitive to use - a convenient knob is used to increase/decrease the speed.

Product line: BASIC

Valve: Plastic 6/4”

Top beam: 10mm flat bar powder coated

Legs: Short powder coated

Hinges: Plastic

Mesh size: 25x70 mm

Basket mounting in the drum: Tarnamid sleeve

Drum height: 610 mm

Drum rim: none

Other: Honey extractor for self-assembly, shipped in a cardboard box

Warranty: 2 years

package width: 58

package height: 105

package depth: 52

package weight: 29
