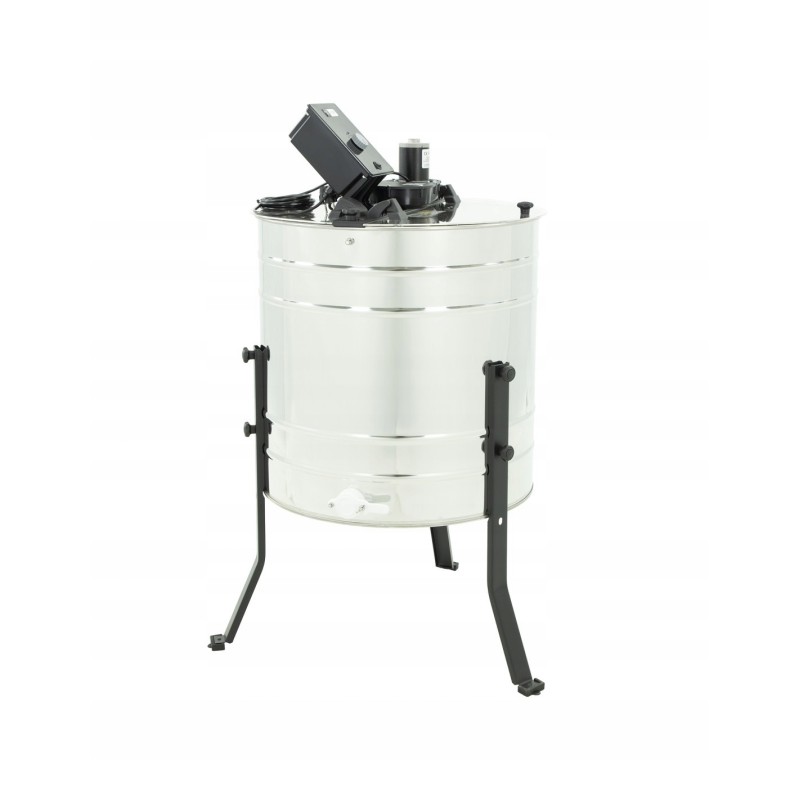

4-Frame Diagonal Electric Honey Extractor

Electric Diagonal Honey Extractor 4-FrameProduct description: Recommended especially for beekeepers with smaller apiaries with access to electricity.

The 4-frame diagonal honey extractor is used to obtain honey from bee combs using the centrifugal method. The centrifugal force pushes the honey from the comb onto the drum wall, along which it flows to the bottom and escapes through the flap valve. Before inserting the frame into the honey extractor, it is necessary to remove the wax coating from the comb, which protects the honey from spilling out.

The honey extractor basket holds 4 frames ranging in size from 27 to 37 cm, which are placed parallel to the drum wall. After centrifuging one side of the combs, the frames should be turned over and the centrifugation continued. Thanks to this, the centrifugal force will also push the honey out from the other side.

Advantages of the honey extractor: The BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolskie, Dadanowskie, Warsaw, Warsaw extended, Langstroth.

suitable for apiaries with mixed types of hives

easy to use

special basket design that prevents the combs from breaking during centrifugation

possibility of centrifuging thick honey, e.g. heather honey

lock preventing the honey extractor from opening during operation

Description of the 230V universal 4-frame diagonal honey extractor: 18V/80W motor,

230V power supply

Diameter fi600,

6/4” flap valve

New hinge design

Easy assembly, disassembly and cleaning

Convenient to carry thanks to its low weight

Ideal for small apiaries

easy intuitive operation

electric drive

simple manual controller

transparent hinged cover

meets all sanitary and hygienic requirements

enables centrifugation of thick honeys without breaking the combs

set of keys necessary for assembly included

easy availability of spare parts, e.g. valves

attractive price

Polish product

The design of the diagonal honey extractor basket is safe for the combs - they do not break even when centrifuging thick honeys. It will therefore forgive the lack of experience of adepts of beekeeping. In all diagonal honey extractors, regardless of the manufacturer, to extract honey from the other side of the comb, the frames should be reversed. However, diagonal honey extractors have been very popular in hobby apiaries for years.

The BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolska, Dadanowskie, Warsaw, Warsaw widened, Langstroth.

The device is reinforced by: the upper beam and three legs that provide stability.

These elements are made of flat steel and powder coated.

4-frame diagonal honey extractor - drive

The diagonal honey extractor has an electric drive. The 24V/120W motor is mounted in the lower part of the device. It can be powered directly from the 230V mains or using a 12V battery. The motor is operated by a controller. Using the knob on the panel, you can adjust the basket's rotation speed.

4-frame diagonal honey extractor - safety

The cover made of metaplex is equipped with a safety system that prevents it from opening during spinning.

4-frame diagonal honey extractor - additional equipment

The manufacturer adds special pads to the honey extractor as standard, increasing the comfort and safety of apiary work. Thanks to them, the probability of the honey extractors falling into vibrations during honey spinning is minimized. The pads are made of PVC material (SOFT).

ℹ Note:

After use, the honey extractor should be washed and disinfected in accordance with all safety rules. For this purpose, we encourage you to familiarize yourself with our offer of proven cleaning agents and disinfectants

We also recommend our honey separator for the honey extractor.
