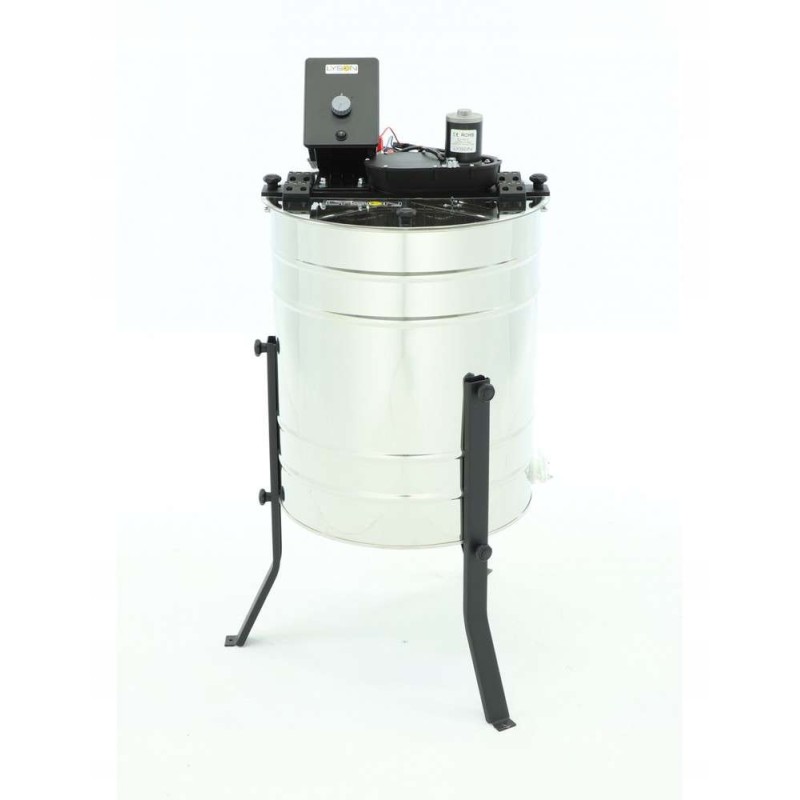

Honey extractor diagonal 4-frame electric 230v oe600mm motor 18v 80w pl

4-FRAME DIAGONAL ELECTRIC HONEY EXTRACTOR 230V Ø600MM 18V/80W ENGINE PLWHY IS IT WORTH IT?IDEAL FOR SMALLER APIES AND HOBBYIST BEEKEEPERSFREE - INCLUDES SPECIAL PVC PADS FOR SAFETYWORKS ON A 230V NETWORK OR WITH A 12V BATTERY4-FRAME DIAGONAL ELECTRIC HONEY EXTRACTOR 230VFI 600mmBASIC LINE ŁYSOŃThe BASIC LINE 4-frame diagonal honey extractor is designed for two types of frames:

Wielkopolskie,

Langstrotha.

The BASIC LINE 4-frame diagonal honey extractor is a basic version of the device for centrifuging honey from bee combs, in this version enriched with a convenient electric drive.

Weight 35 kg

Ideal for

smaller apiary farms

for hobbyist beekeepers

ADVANTAGES FOR YOU Designed especially for smaller apiaries, holding 4 Wielkopolska or Langstroth frames

Electric motor operation with adjustable speed, allowing for efficient honey extraction

Dual power supply options: 230V power supply or 12V battery power supply, which ensures versatility and the possibility of working outside the network

Transparent metaplex cover allows you to observe the extraction process without having to open the vacuum cleaner, ensuring safety against contact with the rotating basket

Steel beam and legs powder coated for increased durability and resistance to rust

Safety system on the metaplex cover preventing opening during operation

Additional PVC shock-absorbing pads (SOFT) included in the set for increased comfort and safety during use

HOW DOES IT WORK?Its basket holds 4 frames of the following types: Wielkopolska, Langstroth, which are set perpendicularly to the drum axis, parallel to its wall.

This solution is present in all diagonal honey extractors.

It makes the spinning take place in two stages: after emptying the honey from one side, stop the machine, switch the frames and continue spinning.

Thanks to this, the centrifugal force will also push the honey out from the other side.

WELL BUILTThe basket

is mounted on tarnamid sleeves that allow it to rotate in the drum. This element is made of stainless steel rods, which create a mesh with 25x70mm mesh.

The drum

has a diameter of 600 mm and a height of 610 mm. It is made of 0.6 mm thick stainless steel sheet, acid-resistant 0H18N9. Its bottom has the shape of a cone convex outwards. This profiling facilitates the flow of honey through the 6/4' flap valve and enables efficient washing and cleaning.

The cover

closes the drum from the top. It is made of 3mm thick metaplex. It protects against contact with the rotating basket and honey splashing.

Reinforcements:

top beam and three legs ensuring stability. These elements are made of 10mm thick flat steel and powder coated to protect against rust.

UNIVERSALThe BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as, for example,

Wielkopolskie,

Dadanowskie,

Warszawskie,

Warszawskie poszerzone,

Langstrotha.

ELECTRIC DRIVEThe diagonal honey extractor has an electric drive. The 24V/120W motor is mounted in the lower part of the device. It can be powered directly from the 230V mains or from a 12V battery. The motor is operated by a controller. Using the knob on the panel, you can adjust the basket's rotation speed.

MOST IMPORTANT INFORMATION Adapted to Wielkopolska or Langstroth frames

Drum diameter 600mm

Drum height 610mm

18V / 80W electric motor,

Dual power supply options: 230V power supply or 12V battery operation

Stainless steel mesh basket with 25x70mm holes, mounted on tarnamid sleeves

Drum thickness 0.6mm, made of 0H18N9 acid-resistant steel

3mm metaplex cover

10mm flat steel upper beam, powder coated

Powder coated tripod legs

6/4' flap valve

Adjustable rotation speed using a knob

Safety system on the cover metaplex

Additional shock-absorbing PVC pads included (SOFT)

ADDITIONAL SAFETY The metaplex cover is equipped with a safety system that prevents it from opening during spinning.

The device is reinforced by: an upper beam and three legs that provide stability.

TECHNICAL DATA Drum diameter: Ø600 mm

Frame type: Wielkopolska, Langstroth,

Drive: Electric

Power supply: 230V

Controller: MDD-01

Motor: 18V / 80W,

Drum and basket construction:

Drum sheet thickness: 0.6 mm

Valve: Plastic 6/4'

Upper beam: 10 mm flat bar powder coated

Plexiglass: 3 mm

Legs: Short powder coated

Hinges: Plastic 4 pcs.

Mesh size: 25x70 mm

Basket mounting in the drum: Tarnamid sleeve

Drum rim: –

Drum height: 610 mm

Other: Honey extractors for self-assembly (sent in boxes)
