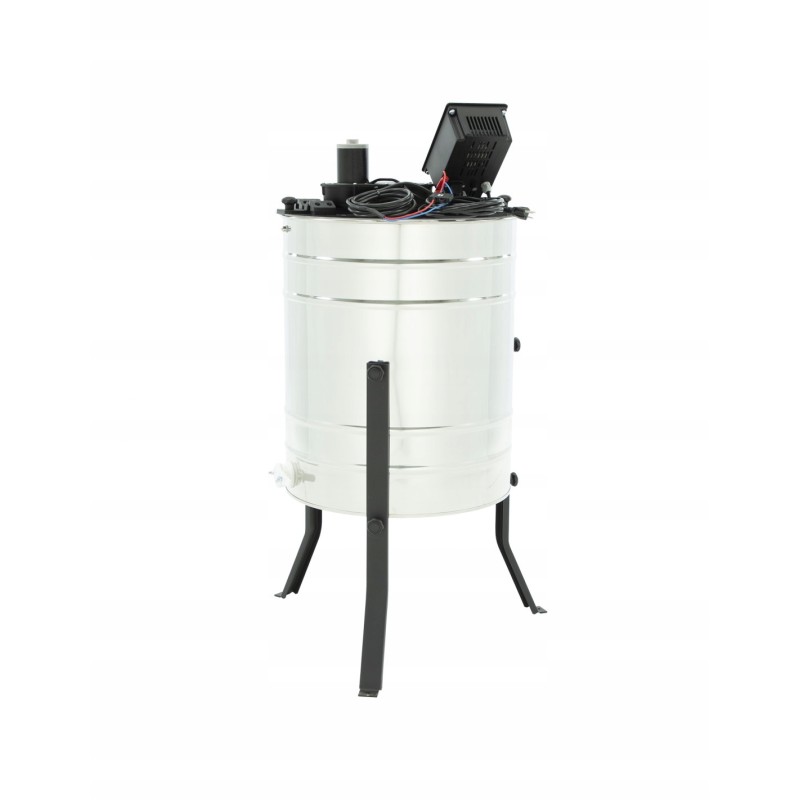

Honey extractor 4 pl diag el 230v oe600 universal basket

4-Frame Diagonal Electric Honey Extractor 230V, Ø600, Universal Basket – BASIC LINE Made in Poland, on this auction you buy from the manufacturer

W224BB

Recommended for beginner beekeepers and those with small hobby apiaries with access to electricity.

24V/120W engine,

230V power supply

Diameter fi500,

Flap valve 6/4”

New hinge design

Easy assembly, disassembly and cleaning

Easy to carry thanks to its low weight

Ideal for small apiaries

easy intuitive operation

electric drive

simple manual controller

transparent hinged cover

meets all sanitary and hygienic requirements

allows for the centrifugation of thick honeys without breaking the combs

a set of keys necessary for assembly included

easy availability of spare parts, e.g. valves

attractive price

Polish product

4-frame diagonal honey extractor from the BASIC LINE series is the basic version of the device used to extract honey from bee combs, in this version enriched with a convenient electric drive. The manual controller is simple and intuitive to use - the convenient knob is used to increase/decrease the speed.

The design of the diagonal honey extractor basket is safe for the combs - they do not break even when extracting thick honey. It will therefore forgive the lack of experience of adepts of beekeeping. In all diagonal honey extractors, regardless of the manufacturer, to extract honey from the other side of the comb, the frames should be reversed. However, diagonal honey extractors have been very popular in hobby apiaries for years.

The BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolskie, Dadanowskie, Warsaw, Warsaw extended frames, Langstroth.

Product line: BASIC

Honey extractor type: diagonal 4-frame

Frame type: Universal

Drum diameter: Ø600

Drive: electric

Power supply: 230V

Controller: MDD-01

Motor: 24V/120W

Drum sheet thickness: 0.6 mm

Plexiglass: 3 mm

Valve: Plastic 6/4”

Upper beam: 10mm painted flat bar powder coated

Legs: Short powder coated

Hinges: Plastic

Mesh size: 25x70 mm

Basket mounting in the drum: Tarnamid sleeve

Drum height: 610 mm

Drum rim: none

Other: Honey extractor for self-assembly, shipped in a cardboard box

Warranty: 2 years

package weight: 29
