Honey extractor 4 pl diagonal el 230v 500 wl lang

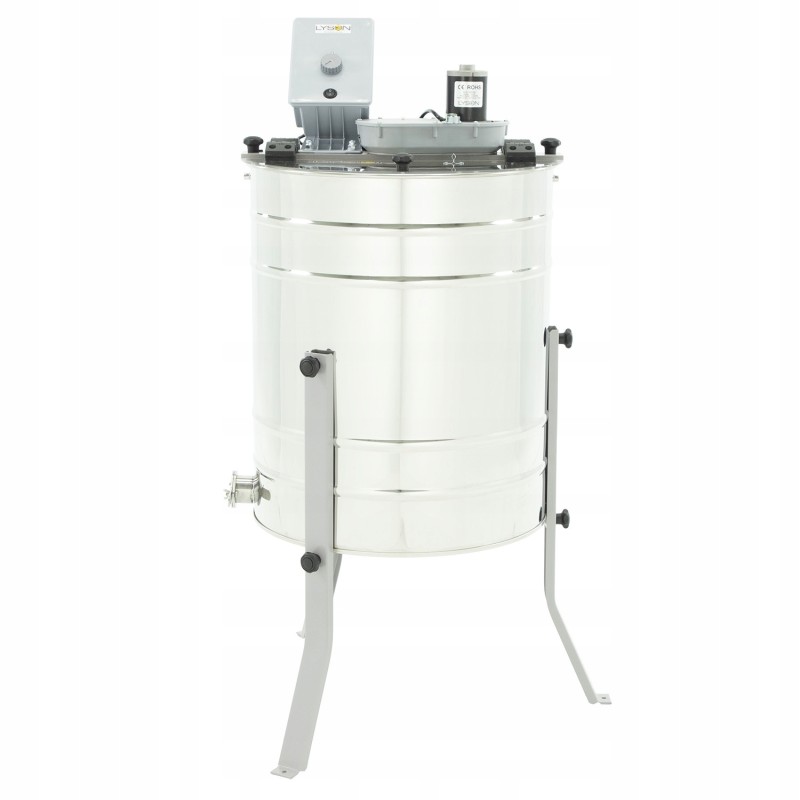

4-Frame Diagonal Electric Honey Extractor 230V, ?500, Wielkopolska, Langstroth, with Stainless Steel Valve – MINIMA 4-Frame Diagonal Honey Extractors can be used in smaller apiaries as well as by hobby beekeepers. They are distinguished by their compact dimensions and easy operation. Their design solutions make it possible to use them for centrifuging even the thickest honey. The cone-shaped construction of the honey extractor bottom allows the honey to flow freely. Honey extractors packed in cardboard boxes, for self-assembly.

Advantages of the 4-frame diagonal honey extractor:

- drum made of acid-resistant stainless steel

- conical bottom

- stainless steel bars of the honey extractor basket

- small dimensions

- very easy to use

- convenience of use due to the electric drive used

- the design allows for the centrifugation of thick honeys without breaking the combs

- holds max. 4 Wielkopolska or Langstroth frames

- transparent cover allowing for safe insight into the operation of the honey extractor

- powder-coated construction elements

- approved for contact with food

- easy availability of spare parts, e.g. valves

- made in Poland At this auction you buy from the manufacturer

The honey extractor is intended for self-assembly (sent in cardboard boxes).

The 4-frame diagonal honey extractor allows for the simultaneous centrifugation of 2 (arranged opposite) or 4 frames with honey. The above model accommodates Wielkopolska or Langstroth frames. The honey extractor is stable during operation.

The electric drive makes work easier and allows for efficient use of time during honey extraction.

The profiled bottom of the honey extractor in the shape of a cone is an indisputable advantage - honey flows faster from the honey extractor to the clarifier (clarifier sold separately).

Diagonal honey extractors, due to the design solution used, are particularly recommended for centrifuging thick honeys that are difficult to extract from the honeycombs.

Thanks to the transparent cover, you can observe the operation of the device while maintaining safety rules.

To centrifuge honey from both sides of the honeycomb in a diagonal honey extractor, you must reverse the frames and repeat the centrifugation process. This is necessary in every diagonal honey extractor.

As standard, we add special pads to the honey extractor that increase the comfort and safety of apiary work. Thanks to them, the probability of honey extractors falling into vibrations during honey centrifugation is minimized. The pads are made of PVC material (SOFT). Very often, spun frames have different weights due to the different amounts of honey they contain. By using LYSON pads you ensure the highest level of device optimization.

Product line: MINIMA

Frame type: Wielkopolska, Langstroth, Ostrowskiej

Honey extractor type: diagonal 4-frame

Drum diameter: ?500

Power supply: 230V

Drive: electric

Controller: MDD-01

Motor: 24V / 120W

Drum sheet thickness: 0.6 mm

Plexiglass: 3 mm

Valve: Stainless steel 6/4'

Upper beam: 10mm flat bar powder coated

Legs: Short powder coated

Hinges: Plastic 4 pcs.

Mesh size: 20×20 mm

Basket placement in the drum: Tarnamid sleeve

Drum height: 610 mm

Drum rim: none

Other: Honey extractor for self-assembly, shipped in a box

Warranty: 2 years

package weight: 29.9
