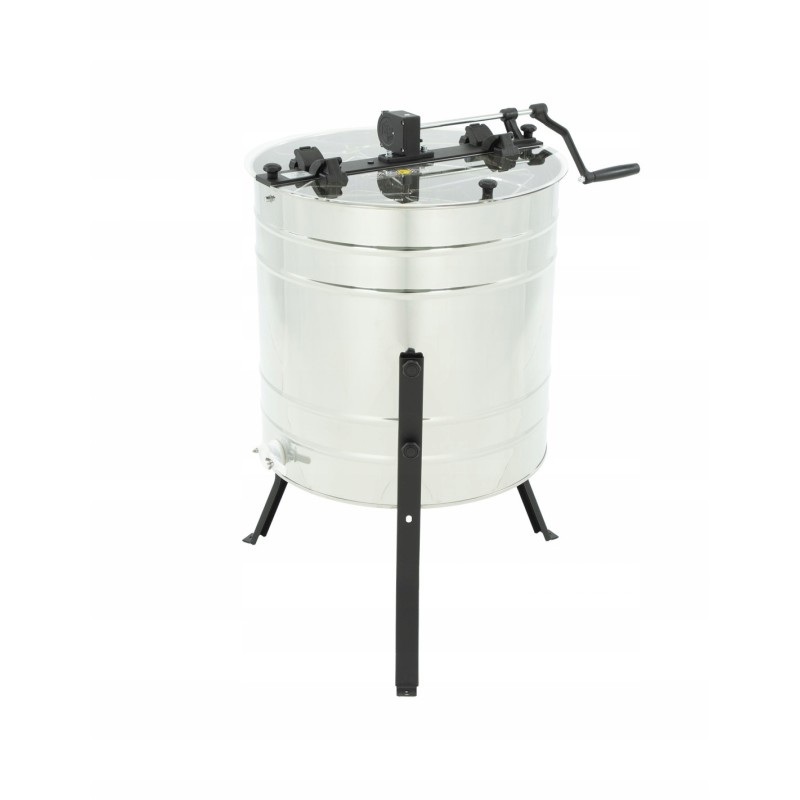

Honey extractor 4 frames manual universal lyson

4-frame honey extractor with manual drive by ŁysońDiagonal honey extractor for 4 frames with manual driveModel of honey extractor with diagonal basket arrangement. Capacity of this centrifuge is 4 any frames such as:

Warszawskie Poszerzane

Dadant

Wielkopolskie

Warszawskie Zwykłe

Ostrowskiej

Specification:Drum with a diameter of 600 mm made of acid-resistant stainless steel 0H18N9.

Basket of honey extractor made of acid-resistant stainless steel rods, arranged in a way that protects frames from breaking off combs during centrifugation. Mesh size 25x70 mm.

Manual drive with brake mounted on the upper beam of the honey extractor, allows operation in conditions where there is no access to electricity.

Plastic valve 6/4'.

Transparent cover, made of meta-plexiglass, allows you to observe the centrifugation process without having to open the honey extractor and exposing yourself to the risk of contact with the rotating basket.

Beam and legs powder coated, which increases the resistance of the coating.

Honey extractor shipped in a box.
