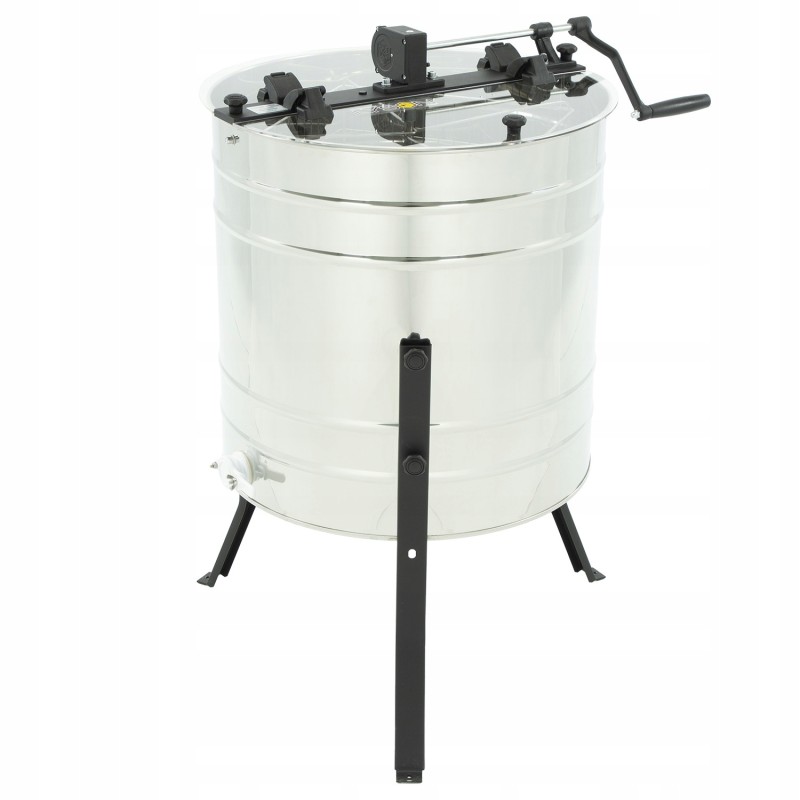

Honey extractor 4-frame diagonal manual Ø 600 universal basket Lyson

4-frame manual diagonal honey extractor, ∅600, universal basket – BASIC LINE Honey extractor with a small drum diameter, characterized by its versatility consisting in the ability to spin practically all types of frames.

A characteristic feature of diagonal honey extractors is the need to reverse the frames.

Diagonal honey extractors are intended for beekeepers with smaller apiaries.

Drum with a diameter of 600 mm made of acid-resistant stainless steel 0H18N9.

Honey extractor basket, made of acid-resistant stainless steel rods, arranged in a way that protects the frames from breaking off the combs during spinning. Mesh size 25x70 mm.

Manual drive with brake mounted on the upper beam of the honey extractor, allows work in conditions where there is no access to electricity.

Plastic valve 6/4'.

Transparent cover, made of meta-plexiglass, allowing you to observe the centrifugation process without having to open the honey extractor and exposing yourself to the risk of contact with the rotating basket.

Beam and legs powder coated, which increases the resistance of the coating.

The BASIC LINE 4-frame diagonal honey extractor is universal, which means that it can accommodate various types of frames: small extension frames and larger ones, such as Wielkopolskie, Dadanowskie, Warsaw, Warsaw extended, Langstroth.

Product line: BASIC

Frame type: Universal

Honey extractor type: 4-frame diagonal

Drum diameter: ∅600

Drive: manual

Drum sheet thickness: 0.6 mm

Plexiglass: 3 mm

Valve: Plastic 6/4”

Top beam: 10 mm flat bar powder coated

Legs: Short powder coated

Hinges: Plastic

Mesh size: 25x70 mm

Basket mounting in the drum: Tarnamid sleeve

Drum height: 610 mm

Drum rim: none

Other: Honey extractor for self-assembly, shipped in a cardboard box

Warranty: 2 years

package width: 58

package height: 105

package depth: 52

package weight: 29

4-frame diagonal honey extractors will find use in smaller apiaries as well as by hobby beekeepers. They are distinguished by their compact dimensions and easy operation.
