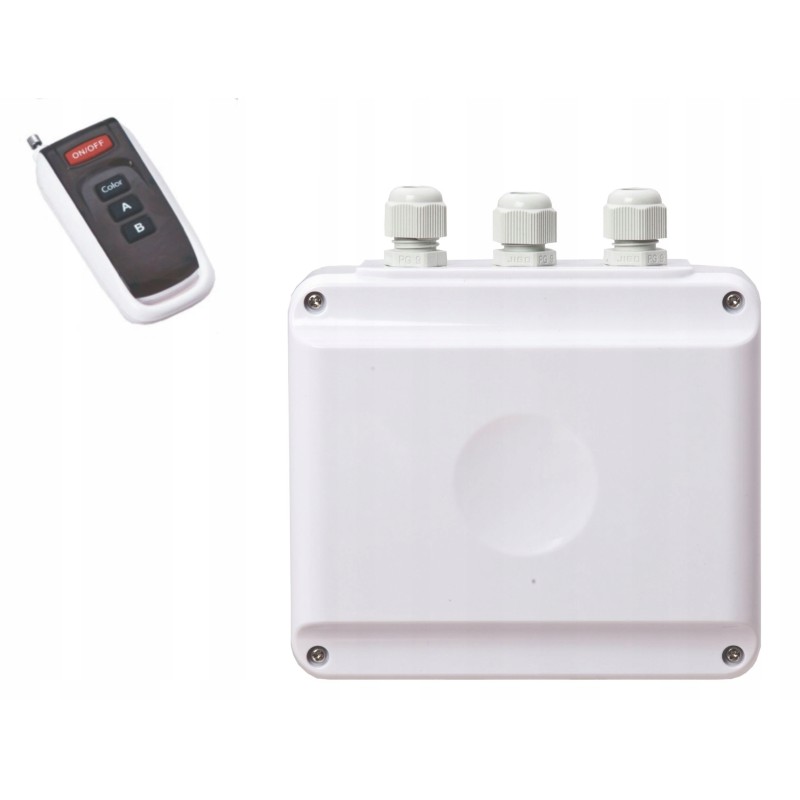

Remote control for spectra vision duravision lamps

Remote control with controller for Spectravision/ Duravision lamps* For use with 12 VAC isolation transformer only

Included with TX868 transmitter

Two auxiliary inputs available

Nominal input voltage: 230 VAC/ 50 Hz

Maximum rated relay contacts

'Color &Light A and B'

resistive load: 14A 250VAC / 14A 30VDC

inductive load: 6A 250 VAC / 6A 30 VDC

Transmitter frequency band: 868MHz

IEC protection class: II

Ambient temperature: 0-40ºC

Dimensions: 150 x 157 x 51 mm

Protection class: IP54

Package includes:

PL-REM controller

Handheld transmitter (DuraLink™)

Spare battery (type A23 12V)

Screws (4x) and expansion bolts (4x)

User manual (EN,NL,FR,DE)
