Set for hydromassage assembly 8 jets jacuzzi tub bali pump 1100w

Hydromassage assembly kit 8 jets jacuzzi tub bali pump 1100WNEW on the market! Hydromassage is a type of water therapy that involves the impact of specific stimuli on the patient's skin. Its operation is based on the use of air and water under appropriate pressure, which affect us in many ways - mechanical, physicochemical and thermal. Warm, hot and cold water can be used for therapeutic or relaxation purposes. A garden tub for your own use can be adapted to your personal needs and preferences. Water from high-pressure jets has a diverse effect on our body, which is why a high-quality hydromassage tub is a valuable addition to the garden.

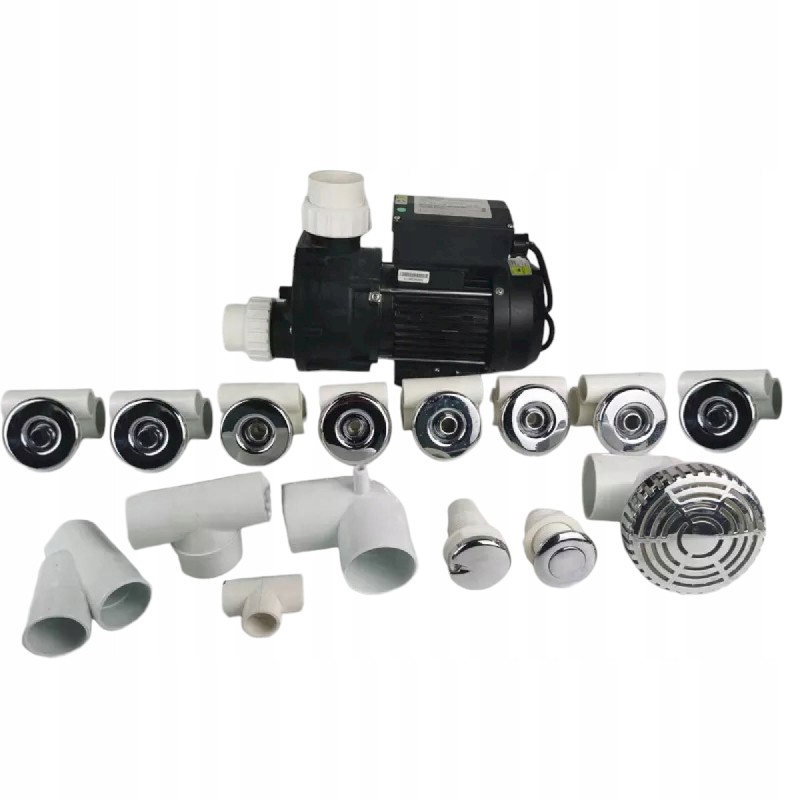

The set includes: 1. Water pump DXD-315E - 1 pc.

2. T-piece for pump connection - 1 pc.

3. Elbow 90 - 3 pcs.

4. Chrome-plated plastic suction tube - 1 pc.

5. nozzles D68 mm, white PVC, chrome front -8 pcs.

6. Cap 20mm - 2 pcs.

7. Cap 32mm - 2 pcs.

8. Pneumatic button, chrome D50mm -1 pc.

9. Air intake regulator, white PVC, chrome front D46mm -1 pc.

10. Air intake T-piece 20mm -1 pc.

11. Y-piece 32mm - 2 pcs.

12. Button hose 6mm -1 m.

13. Pipe 20mm -5 m.

14. Pipe 32mm - 5 m.

15. Pipe 50mm -1 m.

16. PVC glue Griffon WDF05 x 1 pc.

1x PUMP DXD-315E We present you with a high-quality pump, which is designed for swimming pools, hot tubs, whirlpools and jacuzzis. It is also perfect for various types of seawater breeding pools.

It is characterized by exceptionally quiet operation and low vibration emission. In bathtubs, it serves as a circulation pump, supporting filtration, water heating, but is not responsible for the massage itself. The device is designed for continuous operation. The sets are tested by us. They have been designed to work as best as possible and ensure the longest possible operation.

PUMP PARAMETERS: Product type: Water pump / jet pump DXD-315E 1.5HP

Power: 1100W / 1.5 HP

Power supply: 230V 50Hz

Rotation speed: 2850 rpm

Maximum flow: 342 l / min

Insulation class: F

Protection class: IPX5

Gross weight: 15.0 kg

Hydraulic connectors: 50 mm

Dimensions: Length: 415 mm

Height: 245 mm

Depth: 160 mm

1X T-PIECE WITH REDUCING FOR PUMP T-piece with reduction 32 mm made of PVC. Used in hot tubs, garden tubs, SPAs, jacuzzis, swimming pools, etc.

DIMENSIONS: Total height: 59 mm

Total width: 90 mm

Outer diameter: 32 mm

Inner diameter of the narrower connection: 27 mm

Inner diameter of the wider connection: 43 mm

3 x PVC ELBOW 90 degrees 3 pcs of PVC elbows fi 50 mm 90 degrees

1X CHROME-PLATED PLASTIC SUCTION BASKET The suction basket is used to suck water into a massage or filtration pump.

External element color: silver chrome

Basket diameter: 95 mm.,

Thread diameter: 55 mm.,

Direct connection diameter (internal D): 45 mm.,

Connection diameter through extension (internal D / external D): 43 mm./49 mm. (for gluing in a sleeve or elbow D50 and a 50mm hose)

8X CHROME NOZZLES D68 Made of high quality materials, durable, resistant to wear and high temperatures. Simple installation, suitable for bathtubs and garden tubs.

Detachable mushroom so it can be disconnected for cleaning after long-term use.

DIMENSIONS:Plug diameter: 68 mm

Thread diameter: 30 mm

Thread height: 10 mm

Total length of the plug after tightening: 20 mm

Body diameter: 62 mm

Body thread diameter: 43 mm

Body height: 68 mm

Body width: 85 mm

Air hose connection diameter: 20 mm

Water hose connection diameter: 32 mm

2 X 20mm plug2 X 32mm plug1 x CHROME PNEUMATIC BUTTONSpecification:plastic,

chrome plated outside

It is used to turn the pump on/off. Additionally, the set includes a hose that supplies/cuts off power to the pump.

The set includes: button

nut

1 m of hose for the pneumatic button

DIMENSIONS: Total length: 78 mm

Diameter on the thread: 35 mm

Diameter of the chrome part: 50 mm

Diameter for a thinner hose - ~~ fi 4 mm

1x AIR SUCTION REGULATOR white PVC chrome front REGULATOR, KNOB for regulating aeration in bathtubs, jacuzzis, hydromassage tubs, its task is to supply air to the water jets. Thanks to this, the nozzles are additionally aerated, which increases the power of the entire hydromassage.

DIMENSIONS: Total length: 68 mm

Diameter on the thread: 30 mm

Diameter of the chrome part: 46 mm

Diameter of the PVC hose connection: 26 mm

Length of the threaded part: ~~ 37 mm

1x PVC socket tee The fitting is intended for use in water supply, industrial, swimming pool, garden tub, jacuzzi installations.

It can be used in installations for the transmission of drinking water.

Product group: swimming pool pipes and fittings.

Technical parameters: nominal pipe diameter (DN): 20mm,

outer pipe diameter: 25mm,

inner socket diameter: 25mm,

angle: 90°,

nominal pressure (PN) at 23°C: 16bar,

maximum medium temperature: 60°C,

colour: white.

The product is brand new, covered by manufacturer's warranty.

1X Y- TEE - fi 32mmPIPE 20mm -5 m.PIPE 32mm- 5 m.PIPE 50mm -1 m. Colour: white

Material: PVC, plastic

Due to the smooth outer surface, these hoses can be connected using normal PVC fittings and Profec PVC glue, type Griffon WDF-05.These spiral hoses are perfect for swimming pools, hot tubs, etc., and can be used with compression connectors.

1 x Griffon WDF-05 Glue Capacity: 125 ml

For gluing PVC pipes and fittings and Poolflex hoses.

Durable polyethylene bottle with non-drip brush. Quick-drying, blue. For dry and wet connection.

We present the correct assembly of the set next to it. Safety and certainty of successful purchases of this product When buying an air massage assembly set from us, you can be sure that you are buying an original product, the quality of which is supervised by the Vegas Solutions brand.
