Bypass for heat pump 50mm glue reduction for hose 32 and 38 intex bestway

Universal bypass for heat pumpSet for swimming pool heat pumps+ PVC Cement glue

+ 2x Reductions for 32 or 38mm hose

Bypass made of 3 valves, serves to regulate the flow of water in the swimming pool water circuit.

resistant to corrosion,

UV radiation and chemicals.

The knob is made of ABS plastic

Diameter 50mm d= 50 mm

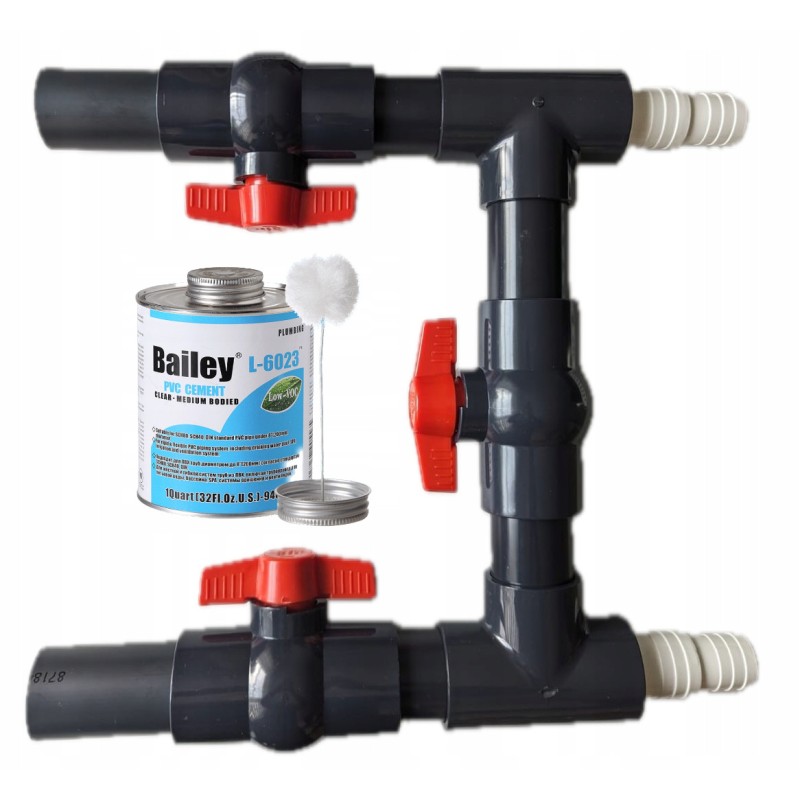

Included:

3 valves d=50mm 10 bar

118ml glue with brush

2 tees 5=50mm,

Pool pipe d=50mm length 80cm

2x Reductions for 32 or 38mm hose

Set for self-cutting and gluing. Other auctions include other connectors for gluing the bypass, depending on whether the pool pump is for connectors or nuts.

See our other bypasses in our offer

Instructional videos

https://www.youtube.com/watch?v=35IpaMI4DQs&t=33s

https://youtu.be/vfYyserR5D0

https://youtu.be/dYIDUN1MRj4

The bypass can be glued in any configuration

PVC CEMENT pipe glue is a specialist glue for gluing PVC pipes and fittings used in swimming pool installations. Equally effective for flexible and rigid pipe systems.

Type: transparent, colorless glue of medium viscosity

Max. pipe diameter: 200 mm

PVC CEMENT GLUE is recommended for PVC pipes up to 8” (200 mm) in diameter and medium-sized PVC sheets in accordance with SCH 80, SCH 40, DIN standards. Suitable for flexible and rigid PVC pipeline systems for domestic and industrial use.

Scope of application: organization of flexible and rigid pipeline systems, including drinking water pipelines, technological pipelines for swimming pools, SPAs, irrigation and ventilation systems.

PVC CEMENT ADHESIVE ADHESIVE FOR CONNECTING

HIGH PRESSURE PIPES

VALVES

T-JOINTS

NIPPLES

REDUCERS

other fittings

Safety

Suitable for drinking water treatment systems

Ecological

Low concentration of volatile organic substances (VOC)

Heat resistance

Does not lose its properties after thawing, thanks to resistance to low temperatures

Long shelf life

The shelf life of the glue is 3 years

Color: transparent

Consistency: medium density

Viscosity: 700-1000 cP

Drying time: fast drying

Viscosity (percent by volume) UEL: 11.8%

Storage temperature: from 40°F (5°С) to 110°F (44°С)

Boiling point: from +57°С to +67°С

Evaporation rate: >,1.0 (BUAC = 1)

Flash point: +321°C

Lower explosive limit (LEL): 2%

Max. VOC: <,510 g/l (low VOC)

Shelf life: 3 years

Maximum pipe size: 8” (200 mm)

Packaging: 946 ml / 473 ml / 237 ml / 118 ml

Standards: ASTM D-2564 QB / T2568-2002
