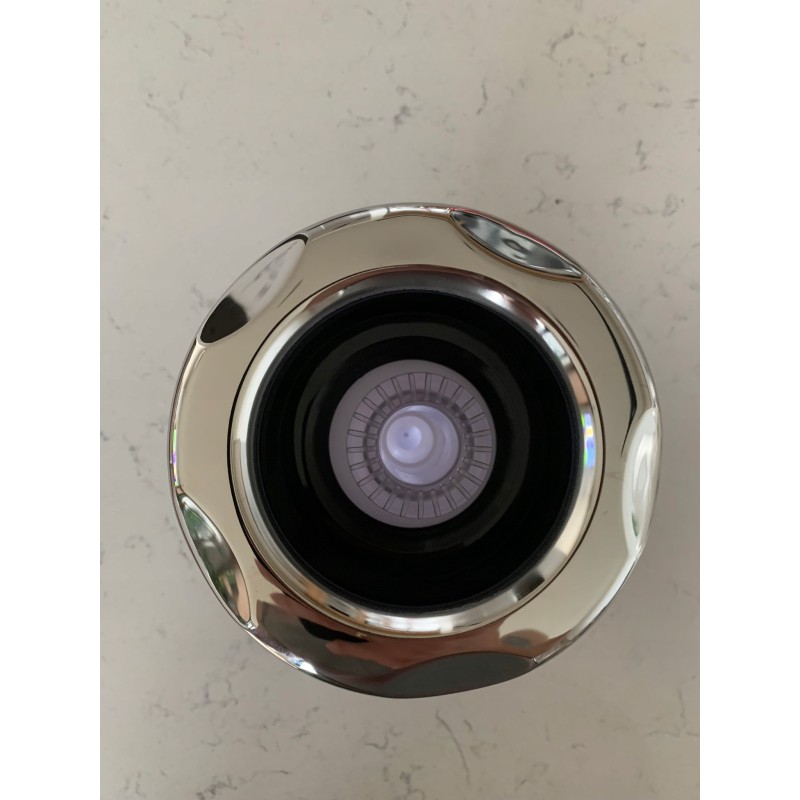

Water massage nozzle 128 mm stainless steel jacuzzi spa

Water and air massage nozzle 128 mm. single-jet.

Single-jet nozzle with adjustable outlet angle and adjustable outlet intensity by rotating the outer part of the nozzle.

External element color: stainless steel,

Nozzle diameter: 128 mm.,

Outlet diameter: 21 mm.,

Thread diameter: 93 mm.,

Included: mounting element with thread, nut, gasket, internal element with adjustable outlet intensity.

Water connection diameter: 22 mm. (for D25 mm or 3/4″ hose),

Air connection diameter 11 mm. (for D11 mm or 3/8″ hose),

Water and air massage nozzles only operate on the water pump, no air blower is connected to them. Air is sucked in by the pressure of the pumped water.

It is necessary to extend the air suction hoses from the nozzles above the water level in the bathtub/tub. They can be collected into a distributor and connected to the air control valve.

The air connections in the nozzle can also be plugged and the nozzle will only work as a water nozzle.
