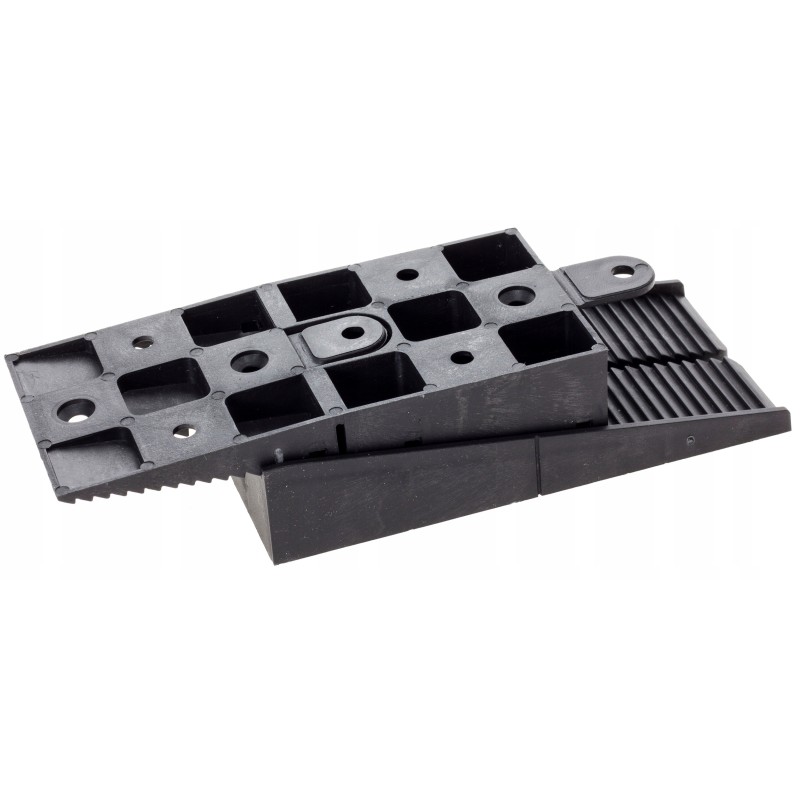

Adjustable decking supports wedge under the joist board wedge base 15 35mm

The subject of the auction is a Raptor wedge bracket in size S 15-35mm. A stable base is a solid foundation for a terrace or floor that will withstand loads of up to 1000 kilograms per bracket.

Quick, simple and cheap assembly.

Possibility to attach the bracket to the ground.

It has holes that allow water to drain freely.

Under joists, etc.

Constant air circulation.

Bracket height from 15-35mm.

The design of the brackets eliminates unpleasant knocking and creaking.

It has a side handle for mounting the joist.

Application: under all types of joists.

Material: PP Temperature range: from -30 ° C to 60 ° (details on load-bearing capacity in the RAPTOR technical specification)

RAPTOR brackets are a solution dedicated specifically to leveling joists under terraces and under wooden floors on joists. Thanks to this specialization, we offer a high-quality system solution that is also attractively priced compared to other system solutions with a wider range of applications.

The possibility of lateral installation of the joist, adjustable support from 15 mm, the largest dimensions of the wedge bracket base on the market, support adjustment with a precision of less than 1 mm and a system inclination corrector are just the beginning of the list of advantages of this series of products.

Height adjustment is done by moving the serrated wedge on the serrated base.

S wedge: External dimensions: Width: 55.5 mm, Length: 120 mm, Height: 23.5 mm. S base: External dimensions: Width: 60 mm, Length: 120 mm, Height: 25 mm

S bracket 15-35mm

For low adjustment, in the range of 15 to 35 mm, the S base and S wedge are used. The S wedge is made in a way that allows it to be broken or cut into 2 parts, and the resulting elements can be used as two separate full-value wedges, both with a handle for attaching the joist.

Note: halving the wedge is necessary to obtain an adjustment range of 15 mm. Sets created from wedge halves and the S base can be combined with additional accessories, a 2 mm protective pad, a slope corrector, an acoustic pad and a 30 mm base.

It is worth paying attention to the entire Raptor joist leveling system, 15-245 mm, which is used in building terraces and makes work much easier. Below we have presented all the elements of the Raptor system, which you will find on our other auctions.
