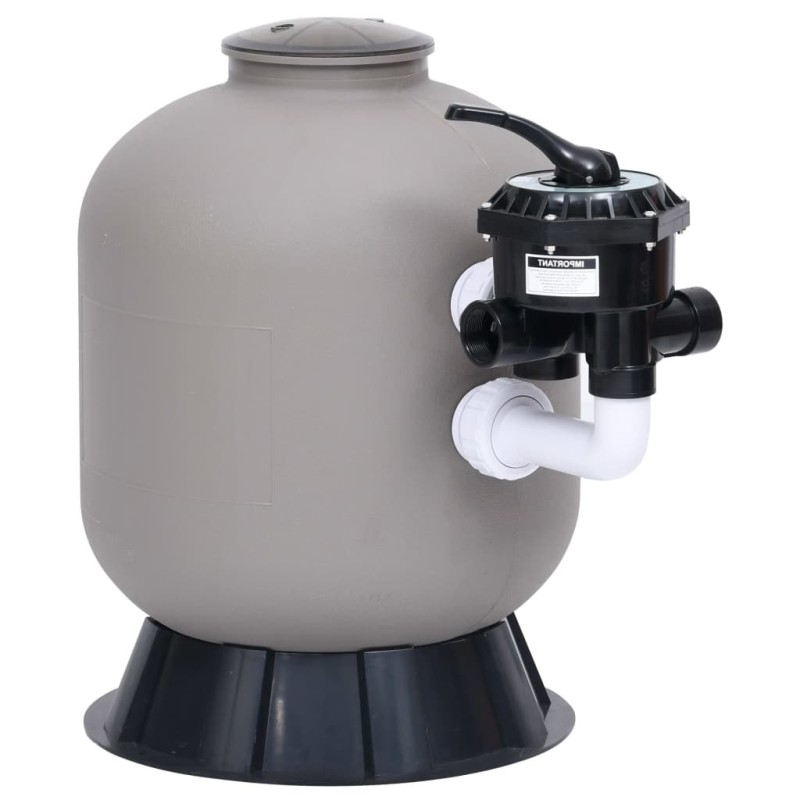

Sand pool filter side mount valve 6 ways

SAND FILTER SIDE MOUNTING 6-WAY VALVE GREY Using sand as the filter medium, this pool filter effectively purifies water. This is a very economical and maintenance-free option that will keep your pool water spotlessly clean.

Made of high-density polyethylene, the sand filter is very durable. It is designed to achieve a flow rate of 9 m3/h. The maximum operating pressure is 3.5 bar. It requires 79 kg of filter sand (not included) to operate. The filter is equipped with a 6-way valve for various functions: filtering, backwash, rinsing, wintering, recirculation and flow shut-off. It is perfect for 0.75 HP pool pumps.

Note: The product can be connected to both 32 mm and 38 mm hoses.

Colour: grey

Material: plastic

Dimensions: 485 x 700 mm (W x H)

Connector size: 38 mm

Filter surface: 0.233 m²

Suitable for a pump with a maximum flow rate of 9 m²/h

Maximum working pressure: 3.5 bar

Filter sand required: 79 kg (not included)

Valve position: side mount

6-way valve: filtering, backwash, rinse, winterisation, recirculation and shut-off

Suitable for connecting ... 0.75 HP

For hoses with a diameter of 32 mm or 38 mm

Note: pump not included
