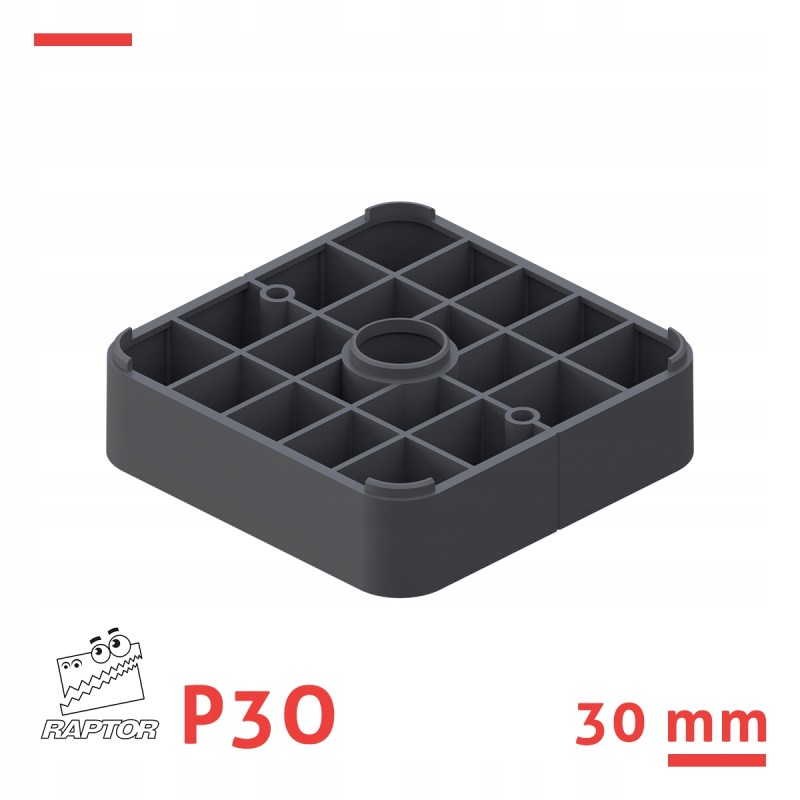

Raptor 30mm wedge bracket base

RAPTOR support base - 30 mm - for joistsApplication for RAPTOR series wedge supports for joists

Technical data: Height: 30 mm

Base dimensions: 124 x 124 mm

Strength: 1,000 kg

Features: The 30 mm base is an element used to extend Raptor supports from S to XL. The element is not stand-alone and can only be used in combination with supports from S to XL. The element can be combined with other additional elements, protective and acoustic pads and a 7% slope corrector. The supports from S to XL can be increased by multiples of 30 mm. The supports connected to the XL support create supports XL1 to XL4, where the last number indicates the number of 30 mm supports added to the XL support. Connection method with other elements: click. When connecting with the L base, pay attention to the marker on the 30 base and the L base so that they are aligned.

RAPTOR series brackets are designed for erecting terraces on joists. They have a step adjustment of approx. 1 mm. Thanks to the appropriate construction, they can be used for terraces erected on both wooden joists and on aluminum or composite joists. Thanks to the wide base, they provide stable support. It is possible to expand the functionality of the brackets using additional accessories.

Quick assembly

Simple construction and a handle for lateral assembly of the joist significantly speed up assembly.

Durability

Brackets resistant to heavy loads.

Height adjustment

Step height adjustment every ~ 1 mm

Universal use

For outdoor terraces and indoor floors.

Low heights

Adjustment range from 15 mm

Slope corrector

Smooth slope adjustment up to 7%

Bracket constructionRAPTOR brackets consist of two basic elements - a wedge and a base. Heights from 125 mm are created by adding an extension base to the basic supports.

Height adjustment RAPTOR supports have the ability to adjust the height using a wedge. Adjustment is made by moving the wedge on the base. Step adjustment approx. every 1 mm.

Application: Terrace supports are designed for supporting / mounting / leveling wooden, composite or aluminum joists, terraces, gratings, floor surface structures, etc.

Terrace supports are adapted for use both indoors and in places exposed to direct external weather conditions. They should be used on stable and even surfaces.
